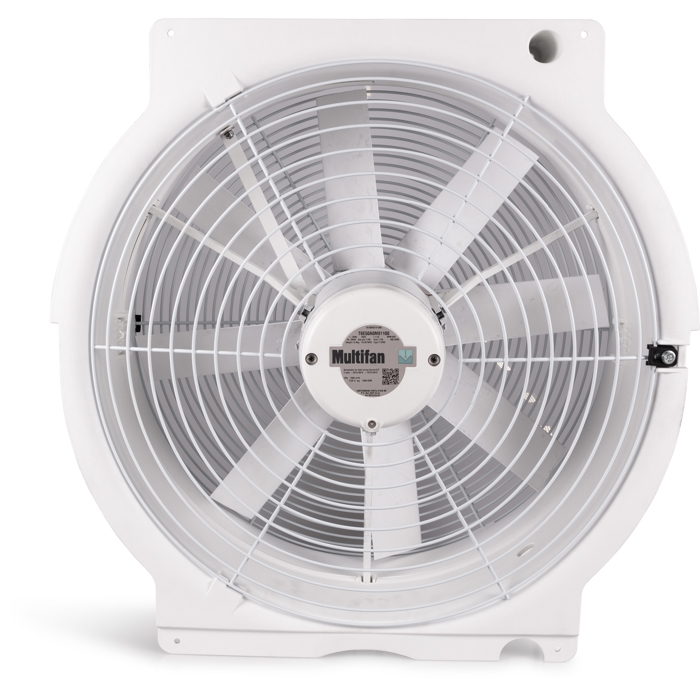

Fan f/recirculating air 6E50 1 50 230 1,5 0,29 7300
Article no.
40-20-1095
Sales unit
1 pc
Availability
Available for order
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | Yes | |
| Type | Recirculating air |
| Rated values | ||
| Phases | 1 | Ph |
| Nominal frequency [Hz] | 50 | Hz |
| Control | Triac / Transformer |
| Classification | ||
| IP protection rating | IP55 | |
| Certifications | CE | |
| Insulation class (DIN EN 60085) | F |
| Dimensions | ||
| Width | 620 | mm |
| Height | 620 | mm |
| Total depth | 327 | mm |
| Diameter | 518 | mm |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 0.29 | kW |
| Nominal voltage single-phase | 230 | V |
| Nominal current single-phase | 1,5 | A |
| Speed | 930 | U/min |
| Ambient temperature | -25 - 40 | °C |
| Sound power level Lw | 76 | dB |
| Sound pressure level Lp | 51 | dB |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 0 Pa | 7150 | m³/h |
| Characteristic curve – 10 Pa | 6800 | m³/h |
| Characteristic curve – 20 Pa | 6450 | m³/h |
| Characteristic curve – 30 Pa | 6100 | m³/h |
| Characteristic curve – 40 Pa | 5550 | m³/h |
| Characteristic curve – 50 Pa | 5000 | m³/h |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
