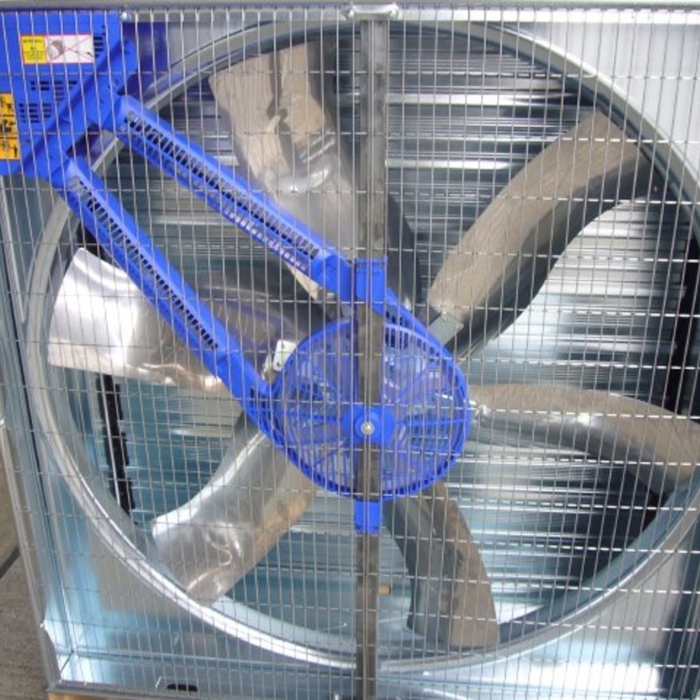

Fan EM50 1.50HP SST 41930m³ 400-3-60 ass. max. 60Pa
Article no.
60-25-3036
Sales unit
1 pc
Availability
Upon request
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
| Basic data | ||
| Montiert | Mounted | |
| Type | Installation at a wall |
| Rated values | ||
| Phases | 3 | Ph |
| Nominal frequency [Hz] | 60 | Hz |
| Control | Frequency converter |
| Classification | ||
| IP protection rating | IP55 | |
| Certifications | CE | |
| Insulation class (DIN EN 60085) | F |
| Dimensions | ||
| Width | 1380 | mm |
| Height | 1380 | mm |
| Total depth | 530 | mm |
| Diameter | 1270 | mm |
| Rated values 60 Hz | ||
| Elektrische Nennleistung | 1.4 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Nominal current delta connection | 5,2 | A |
| Nominal current star connection | 3 | A |
| Speed | 418 | U/min |
| Power factor | 0.78 | |
| Ambient temperature | -25 - 50 | °C |
| Sound power level Lw | 90 | dB |
| Sound pressure level Lp | 65 | dB |
| Volumetric flow rate 60 Hz | ||
| Characteristic curve – 0 Pa | 42125 | m³/h |
| Characteristic curve – 10 Pa | 40494 | m³/h |
| Characteristic curve – 20 Pa | 38863 | m³/h |
| Characteristic curve – 30 Pa | 37097 | m³/h |
| Characteristic curve – 40 Pa | 35195 | m³/h |
| Characteristic curve – 50 Pa | 33293 | m³/h |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
