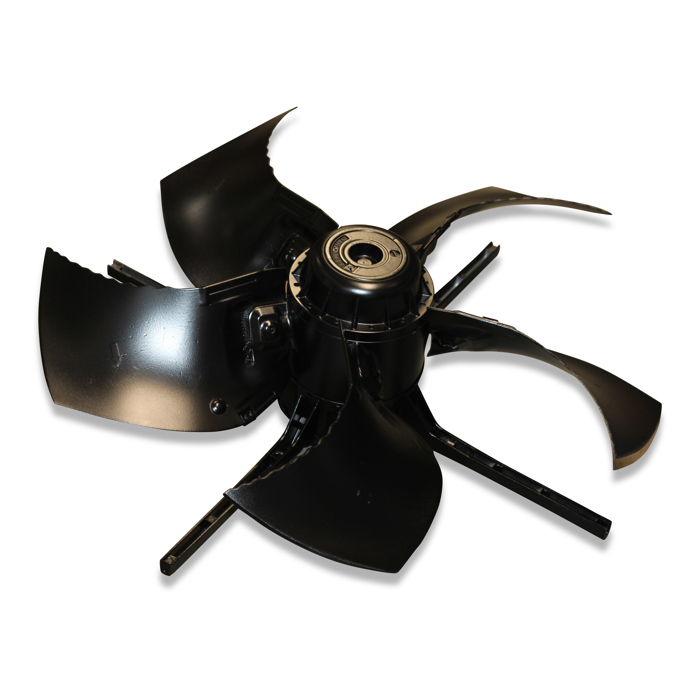

Fan FF063-6ET(S) 1x230V 50/60Hz 2.5/3.3A f/tube
Sales unit
1 pc
Availability
Available for order
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
Dimensions Length 616.00 mm Width 578.00 mm Height 213.00 mm Actual weight 12.902 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation in pipe Chimney 600 - CL 600
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.52 kW Nominal voltage single-phase 230 V Nominal current single-phase 2,5 A Speed 890 U/min Ambient temperature -25 - 40 °C Sound power level Lw 71 dB Sound pressure level Lp 46 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 12627 m³/h Characteristic curve – 10 Pa 12175 m³/h Characteristic curve – 20 Pa 11709 m³/h Characteristic curve – 30 Pa 11048 m³/h Characteristic curve – 40 Pa 10055 m³/h Characteristic curve – 50 Pa 8878 m³/h Characteristic curve – 60 Pa 5158 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 34.7 W/(1000m³/h) Characteristic curve – 10 Pa 37.3 W/(1000m³/h) Characteristic curve – 20 Pa 39.2 W/(1000m³/h) Characteristic curve – 30 Pa 42.5 W/(1000m³/h) Characteristic curve – 40 Pa 47.6 W/(1000m³/h) Characteristic curve – 50 Pa 54.4 W/(1000m³/h) Characteristic curve – 60 Pa 90 W/(1000m³/h) Characteristic curve – 70 Pa 135.1 W/(1000m³/h) Characteristic curve – 80 Pa 248.3 W/(1000m³/h) Characteristic curve – 90 Pa 654.8 W/(1000m³/h)
Rated values 60 Hz Elektrische Nennleistung 0.72 kW Nominal voltage single-phase 230 V Nominal current single-phase 3,3 A Speed 920 U/min Ambient temperature -25 - 55 °C Sound power level Lw 72 dB Sound pressure level Lp 47 dB
Volumetric flow rate 60 Hz Characteristic curve – 0 Pa 12888 m³/h Characteristic curve – 10 Pa 12333 m³/h Characteristic curve – 20 Pa 11815 m³/h Characteristic curve – 30 Pa 11335 m³/h Characteristic curve – 40 Pa 10813 m³/h Characteristic curve – 50 Pa 10257 m³/h Characteristic curve – 60 Pa 9628 m³/h Characteristic curve – 70 Pa 8908 m³/h Characteristic curve – 80 Pa 7507 m³/h
Illustrations may show accessories that are not included in the scope of delivery.
