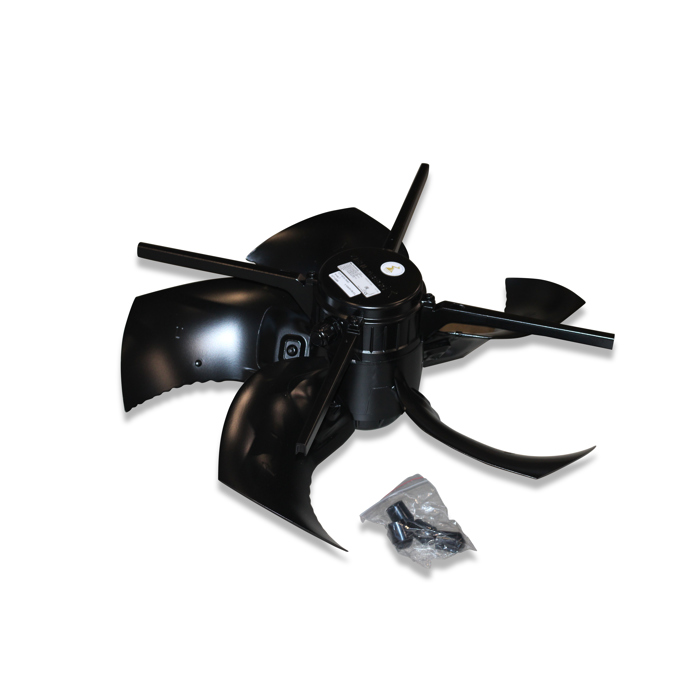

Fan FF063-6DT(S) 3x400V 50/60Hz 1.3/1.5A f/tube
Article no.
60-47-7902
Sales unit
1 pc
Availability
In stock
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
| Dimensions | ||
| Length | 620.00 | mm |
| Width | 572.00 | mm |
| Height | 216.00 | mm |
| Actual weight | 13.348 | kg |
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | Yes | |
| Type | Installation in pipe | |
| Chimney | 600 - CL 600 |
| Rated values | ||
| Phases | 3 | Ph |
| Nominal frequency [Hz] | 50/60 | Hz |
| Control | Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac |
| Classification | ||
| IP protection rating | IP54 | |
| Certifications | CE | |
| Insulation class (DIN EN 60085) | F | |
| Efficiency rating (ErP) | E15 |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 0.54 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Nominal current delta connection | 2,2 | A |
| Nominal current star connection | 1,25 | A |
| Speed | 930 | U/min |
| Power factor | 0.6 | |
| Ambient temperature | -40 - 70 | °C |
| Sound power level Lw | 71 | dB |
| Sound pressure level Lp | 46 | dB |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 0 Pa | 12921 | m³/h |
| Characteristic curve – 10 Pa | 12504 | m³/h |
| Characteristic curve – 20 Pa | 12075 | m³/h |
| Characteristic curve – 30 Pa | 11523 | m³/h |
| Characteristic curve – 40 Pa | 10741 | m³/h |
| Characteristic curve – 50 Pa | 9713 | m³/h |
| Characteristic curve – 60 Pa | 7291 | m³/h |
| Spec. power 50 Hz | ||
| Characteristic curve – 0 Pa | 33.4 | W/(1000m³/h) |
| Characteristic curve – 10 Pa | 35.5 | W/(1000m³/h) |
| Characteristic curve – 20 Pa | 37.4 | W/(1000m³/h) |
| Characteristic curve – 30 Pa | 39.9 | W/(1000m³/h) |
| Characteristic curve – 40 Pa | 44 | W/(1000m³/h) |
| Characteristic curve – 50 Pa | 49.5 | W/(1000m³/h) |
| Characteristic curve – 60 Pa | 63.9 | W/(1000m³/h) |
| Characteristic curve – 70 Pa | 104.4 | W/(1000m³/h) |
| Characteristic curve – 80 Pa | 162.2 | W/(1000m³/h) |
| Characteristic curve – 90 Pa | 277.1 | W/(1000m³/h) |
| Characteristic curve – 100 Pa | 585.4 | W/(1000m³/h) |
| Rated values 60 Hz | ||
| Elektrische Nennleistung | 0.8 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Nominal current delta connection | 2,5 | A |
| Nominal current star connection | 1,4 | A |
| Speed | 1050 | U/min |
| Power factor | 0.81 | |
| Ambient temperature | -40 - 70 | °C |
