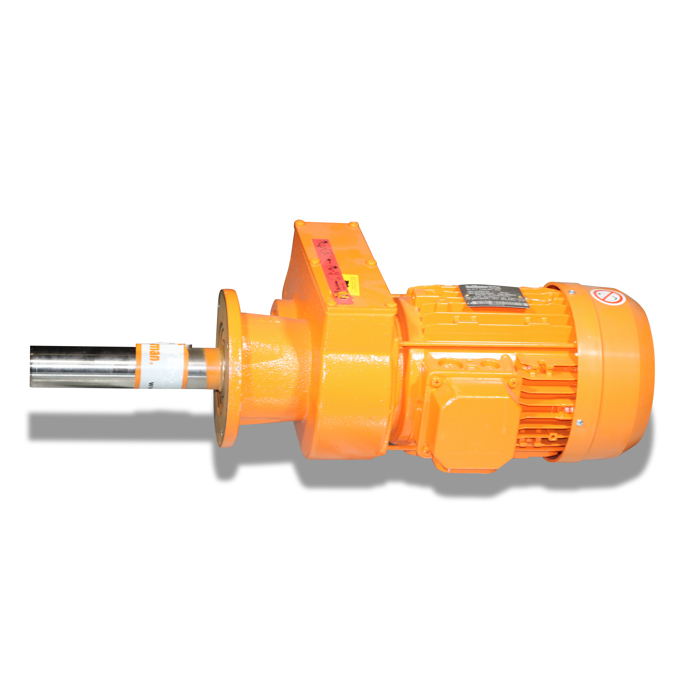

Mot-g 1.50kW 230/400V 3Ph 50Hz 26.5r shaft 40x180 StepByStep
Article no.
71-51-7020
Sales unit
1 pc
Availability
Available for order
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
| Dimensions | ||
| Length | 591.00 | mm |
| Width | 276.00 | mm |
| Height | 201.00 | mm |
| Actual weight | 29.000 | kg |
| Basic data | ||
| Design electric motor | B14 | |
| Motor size | 90L |
| Rated values | ||
| Frequency | 50 | Hz |
| Pole pair | 50 |
| Classification | ||
| IP protection rating | IP55 | IP |
| Rated values 50 Hz | ||
| Nominal power | 1,5 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 6,4 | A |
| Current consumption star connection | 3,7 | A |
| Power factor | 3,7 | |
| Motor speed | 1410 | r/min |
| Nominal torque motor | 10,16 | Nm |
| Gear speed | 26,5 | r/min |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
