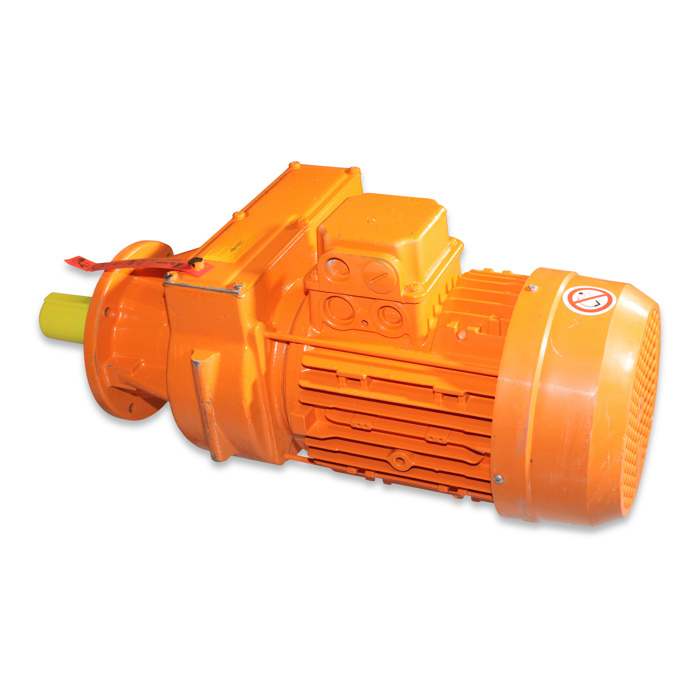

Mot-g 1,50 230/400 50 63r Shaft 35x56 with flange
Article no.
90-00-3901
Sales unit
1 pc
Availability
Available for order
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
| Dimensions | ||
| Length | 516.00 | mm |
| Width | 267.00 | mm |
| Height | 218.00 | mm |
| Actual weight | 29405.000 | kg |
| Basic data | ||
| Running mode | S2 + Xmin | S1-S10 |
| Betriebsart S2 Minuten | S2 + Xmin | min |
| Design electric motor | B14 | |
| Motor size | 90 | |
| Gear type | Spur gear | |
| Gear design | Flange version | |
| Gear position | M1 | M1-M6 |
| Menge Getriebeöl | M1 | kg |
| Norm | IEC60034 | |
| Weight | IEC60034 | kg |
| Rated values | ||
| Frequency | 50 | Hz |
| Pole pair | 50 | |
| Type of connection | Star/Delta | |
| Permiss. ambient temp. during operation | -15 - 40 | °C |
| Classification | ||
| Wirkungsgradklasse | IE1 | IE1-IE5 |
| IP protection rating | IP55 | IP |
| Insulation class | F | |
| Certifications | CE |
| Rated values 50 Hz | ||
| Nominal power | 1,5 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 6,50 | A |
| Current consumption star connection | 3,7 | A |
| Power factor | 3,7 | |
| Efficiency | 3,7 | |
| Motor speed | 1410 | r/min |
| Nominal torque motor | 10,1 | Nm |
| Gear speed | 63,0 | r/min |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
