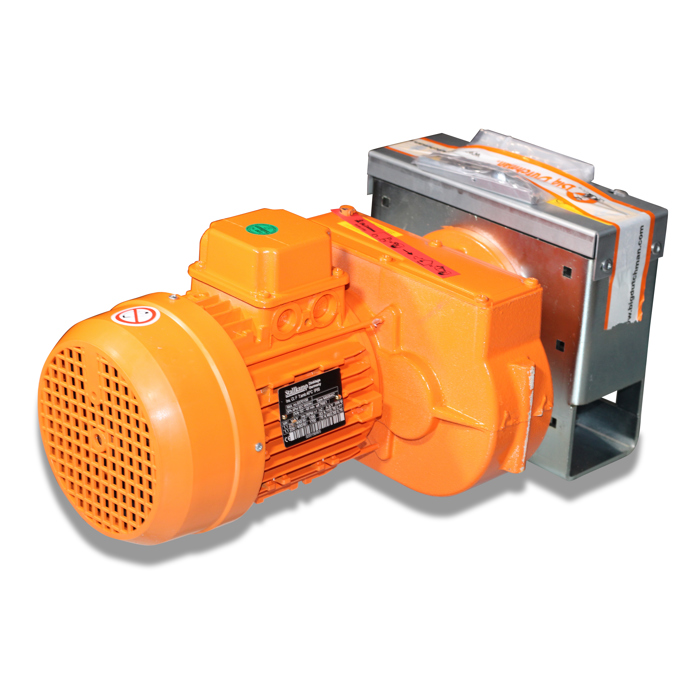

Drive MPF 1-L 36m 1.10KW ccw 230/400V 3PH 50Hz
SKU
10-93-5022
Sales unit
1 pc
Availability
Available for order
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
| Dimensions | ||
| Length | 518.00 | mm |
| Width | 293.00 | mm |
| Height | 261.00 | mm |
| Actual weight | 35.487 | kg |
| Basic data | ||
| Number of lines / circuits | 1-B |
| Rated values | ||
| Nominal frequency [Hz] | 50/60 | |
| Conveying speed | 50/60 | m/min |
| Rated values 50 Hz | ||
| Nominal power | 1,1 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 4,49 | A |
| Current consumption star connection | 2,6 | A |
| Rated values 60 Hz | ||
| Nominal power | 1,1 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 4,49 | A |
| Current consumption star connection | 2,6 | A |
Technical datasheet
User manual
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
