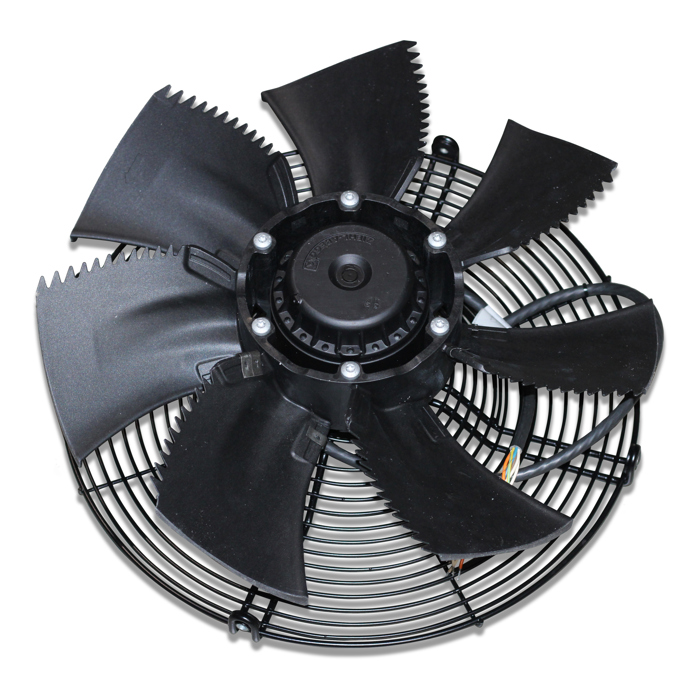

Fan FN040-4E 230V 50Hz 1.15A f/JetMaster NGL-80 (ZA)
SKU
42-25-1522
Sales unit
1 pc
Availability
Available for order
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
| Dimensions | ||
| Length | 395.00 | mm |
| Width | 394.00 | mm |
| Height | 151.00 | mm |
| Actual weight | 5.100 | kg |
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | Yes |
| Rated values | ||
| Phases | 1 | Ph |
| Nominal frequency [Hz] | 50 | Hz |
| Control | Not controllable |
| Classification | ||
| IP protection rating | IP54 | |
| Certifications | CE | |
| Insulation class (DIN EN 60085) | F | |
| Efficiency rating (ErP) | E15 |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 0.26 | kW |
| Nominal voltage single-phase | 230 | V |
| Nominal current single-phase | 1,15 | A |
| Speed | 1320 | U/min |
| Ambient temperature | -25 - 55 | °C |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 0 Pa | 4400 | m³/h |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
