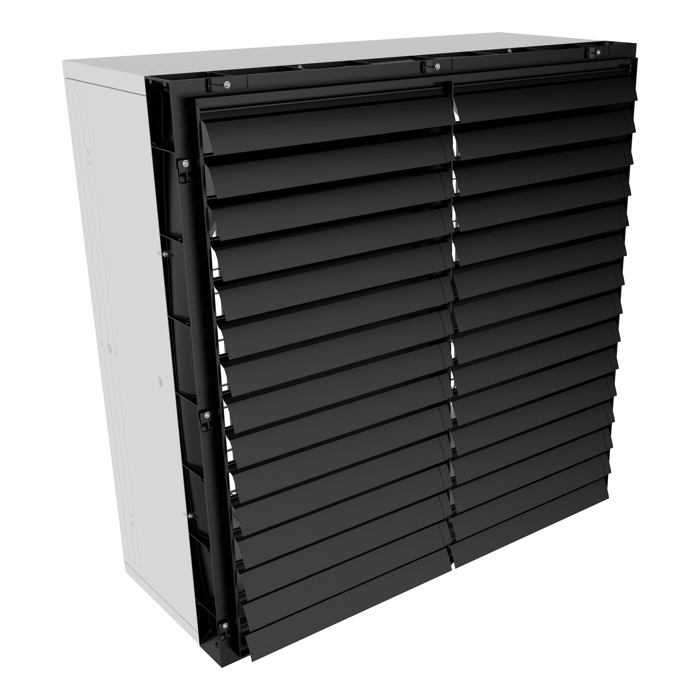

Fan BD-Blue 130 ON/OFF 230-1-60 7.1A 40600m³/h
SKU
60-25-4584
Sales unit
1 pc
Availability
Available for order
Sign in with your myBigDutchman-Account to see your personal price.
Open registration
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | No | |
| Type | Installation at a wall | |
| Weight | 88.4 | kg |
| Rated values | ||
| Phases | 1 | Ph |
| Nominal frequency [Hz] | 60 | Hz |
| Control | Not controllable |
| Classification | ||
| IP protection rating | IP65 | |
| Certifications | CE | |
| Efficiency rating (ErP) | E15 |
| Dimensions | ||
| Width | 1380 | mm |
| Height | 1380 | mm |
| Total depth | 652 | mm |
| Diameter | 1270 | mm |
| Rated values 60 Hz | ||
| Elektrische Nennleistung | 1.452 | kW |
| Nominal voltage single-phase | 230 | V |
| Voltage tolerance | -10 - 10 | % |
| Nominal current single-phase | 7,1 | A |
| Speed | 840 | U/min |
| Power factor | 0.99 | |
| Ambient temperature | -40 - 40 | °C |
| Sound power level Lw | 90 | dB |
| Sound pressure level Lp | 54 | dB |
| Volumetric flow rate 60 Hz | ||
| Characteristic curve – 0 Pa | 40600 | m³/h |
| Characteristic curve – 10 Pa | 39000 | m³/h |
| Characteristic curve – 20 Pa | 37400 | m³/h |
| Characteristic curve – 30 Pa | 35600 | m³/h |
| Characteristic curve – 40 Pa | 33800 | m³/h |
| Characteristic curve – 50 Pa | 31700 | m³/h |
| Characteristic curve – 60 Pa | 29600 | m³/h |
| Characteristic curve – 70 Pa | 27200 | m³/h |
| Characteristic curve – 80 Pa | 24700 | m³/h |
| Characteristic curve – 90 Pa | 22000 | m³/h |
| Characteristic curve – 100 Pa | 19200 | m³/h |
| Spec. power 60 Hz | ||
| Characteristic curve – 0 Pa | 35 | W/(1000m³/h) |
| Characteristic curve – 10 Pa | 37 | W/(1000m³/h) |
| Characteristic curve – 20 Pa | 39 | W/(1000m³/h) |
| Characteristic curve – 30 Pa | 41 | W/(1000m³/h) |
| Characteristic curve – 40 Pa | 44 | W/(1000m³/h) |
| Characteristic curve – 50 Pa | 47 | W/(1000m³/h) |
| Characteristic curve – 60 Pa | 51 | W/(1000m³/h) |
| Characteristic curve – 70 Pa | 55 | W/(1000m³/h) |
| Characteristic curve – 80 Pa | 60 | W/(1000m³/h) |
| Characteristic curve – 90 Pa | 66 | W/(1000m³/h) |
| Characteristic curve – 100 Pa | 75 | W/(1000m³/h) |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
