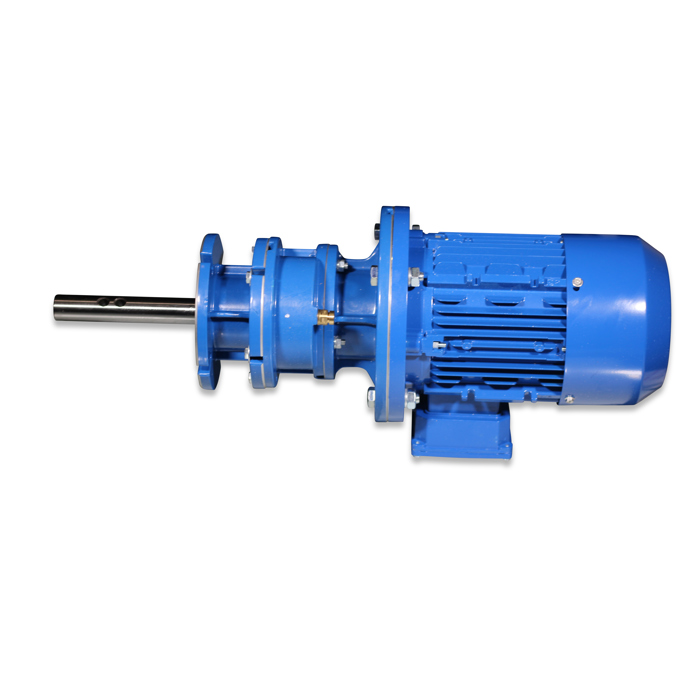

Mot-g 0.75kW 230/400V 50Hz 3Ph 370r FlexVey
SKU
25-60-3068
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 557.00 | mm |
| Width | 217.00 | mm |
| Height | 226.00 | mm |
| Actual weight | 14.749 | kg |
| Basic data | ||
| Running mode | S1 | S1-S10 |
| Design electric motor | B5 | |
| Motor size | 80 | |
| Gear type | Spur gear | |
| Gear design | Flange version | |
| Menge Getriebeöl | 0.09 | kg |
| Norm | IEC60034 | |
| Weight | 13.6 | kg |
| Rated values | ||
| Phases | 3 | Anzahl |
| Frequency | 50 | Hz |
| Pole pair | 4 | |
| Type of connection | Star/Delta | |
| Permiss. ambient temp. during operation | -10 - 40 | °C |
| Kabel Motor | 4 adrig |
| Classification | ||
| Wirkungsgradklasse | IE1 | IE1-IE5 |
| IP protection rating | IP55 | IP |
| Insulation class | F | |
| Certifications | CE |
| Dimensions | ||
| Output shaft length | 135 | Länge mm |
| Rated values 50 Hz | ||
| Nominal power | 0,75 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 3,08 | A |
| Current consumption star connection | 1,78 | A |
| Anlaufstrom Ia/In | 8.9 | Faktor |
| Power factor | 0.76 | |
| Efficiency | 79.6 | |
| Gear speed | 370 | r/min |
| Nennmoment Getriebe [Volllast] | 19 | Nm |
| Service factor | 1 | Fs |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
