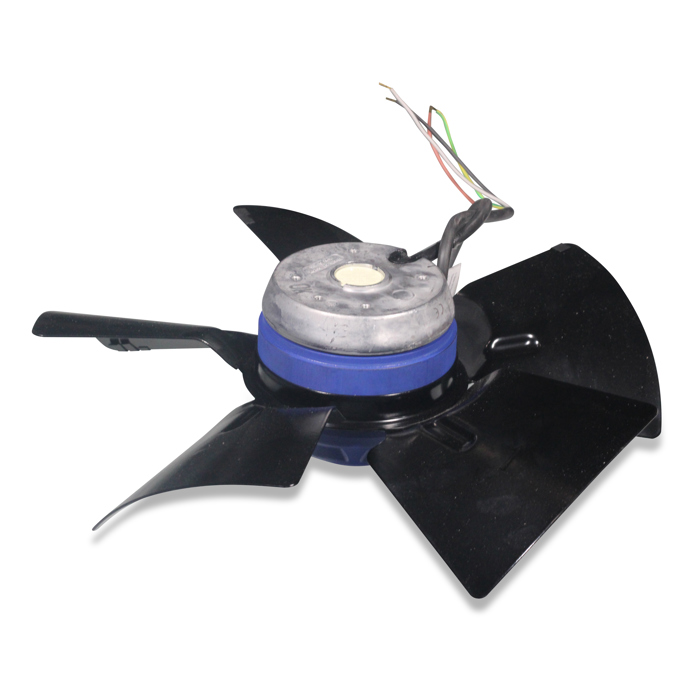

Fan FB030-4EA 1700m³/h 230V 1Ph 50/60Hz 0.39A f/GP14 Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 299.00 mm Width 293.00 mm Height 133.00 mm Actual weight 2.703 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Without superstructures
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP44 Certifications CE Insulation class (DIN EN 60085) F
Rated values 50 Hz Elektrische Nennleistung 0.09 kW Nominal voltage single-phase 230 V Nominal current single-phase 0,39 A Ambient temperature -40 - 65 °C Sound power level Lw 69 dB Sound pressure level Lp 44 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 1749 m³/h Characteristic curve – 10 Pa 1683 m³/h Characteristic curve – 20 Pa 1613 m³/h Characteristic curve – 30 Pa 1540 m³/h Characteristic curve – 40 Pa 1457 m³/h Characteristic curve – 50 Pa 1362 m³/h Characteristic curve – 60 Pa 1230 m³/h Characteristic curve – 70 Pa 1106 m³/h
Rated values 60 Hz Elektrische Nennleistung 0.12 kW Nominal voltage single-phase 230 V Nominal current single-phase 0,54 A Ambient temperature -40 - 65 °C Sound power level Lw 72 dB Sound pressure level Lp 47 dB
Volumetric flow rate 60 Hz Characteristic curve – 0 Pa 2031 m³/h Characteristic curve – 10 Pa 1966 m³/h Characteristic curve – 20 Pa 1900 m³/h Characteristic curve – 30 Pa 1832 m³/h Characteristic curve – 40 Pa 1759 m³/h Characteristic curve – 50 Pa 1676 m³/h Characteristic curve – 60 Pa 1579 m³/h Characteristic curve – 70 Pa 1460 m³/h Characteristic curve – 80 Pa 1338 m³/h Characteristic curve – 90 Pa 1186 m³/h
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
