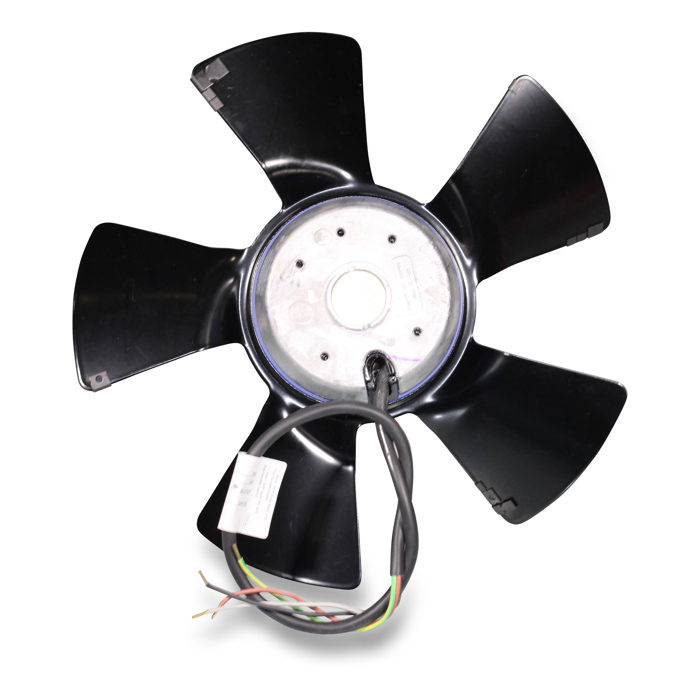

Fan FB025-2EA 1600m³/h 230V 1~50/60Hz 0.54A f/ERA33 Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 245.00 mm Width 243.00 mm Height 141.00 mm Actual weight 2.243 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Without superstructures
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP44 Certifications CE Insulation class (DIN EN 60085) F
Rated values 50 Hz Elektrische Nennleistung 0.12 kW Nominal voltage single-phase 230 V Nominal current single-phase 0,54 A Ambient temperature -40 - 75 °C Sound power level Lw 73 dB Sound pressure level Lp 48 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 1640 m³/h Characteristic curve – 10 Pa 1601 m³/h Characteristic curve – 20 Pa 1562 m³/h Characteristic curve – 30 Pa 1521 m³/h Characteristic curve – 40 Pa 1481 m³/h Characteristic curve – 50 Pa 1439 m³/h Characteristic curve – 60 Pa 1394 m³/h Characteristic curve – 70 Pa 1346 m³/h Characteristic curve – 80 Pa 1293 m³/h Characteristic curve – 90 Pa 1229 m³/h Characteristic curve – 100 Pa 1148 m³/h Characteristic curve – 110 Pa 1047 m³/h Characteristic curve – 120 Pa 906 m³/h
Rated values 60 Hz Elektrische Nennleistung 0.16 kW Nominal voltage single-phase 230 V Nominal current single-phase 0,7 A Ambient temperature -40 - 75 °C Sound power level Lw 75 dB Sound pressure level Lp 50 dB
Volumetric flow rate 60 Hz Characteristic curve – 0 Pa 1742 m³/h Characteristic curve – 10 Pa 1698 m³/h Characteristic curve – 20 Pa 1654 m³/h Characteristic curve – 30 Pa 1608 m³/h Characteristic curve – 40 Pa 1560 m³/h Characteristic curve – 50 Pa 1510 m³/h Characteristic curve – 60 Pa 1461 m³/h Characteristic curve – 70 Pa 1402 m³/h Characteristic curve – 80 Pa 1342 m³/h Characteristic curve – 90 Pa 1280 m³/h Characteristic curve – 100 Pa 1203 m³/h Characteristic curve – 110 Pa 1111 m³/h Characteristic curve – 120 Pa 980 m³/h
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
