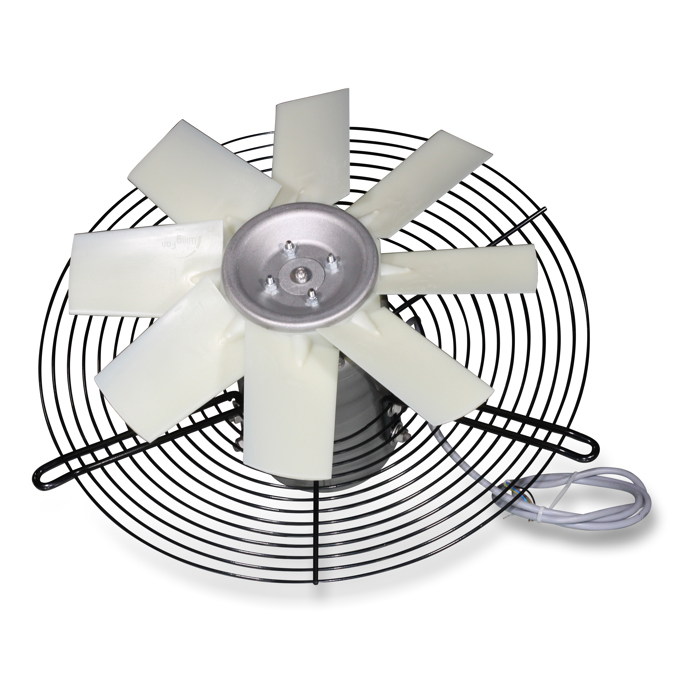

Fan cpl assembled for RGA 100
SKU
40-20-3954
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions | ||
Length | 524.00 | mm |
Width | 490.00 | mm |
Height | 278.00 | mm |
Actual weight | 13.409 | kg |
Basic data | ||
Montiert | Mounted |
Rated values | ||
Phases | 1 | Ph |
Nominal frequency [Hz] | 50 | Hz |
Control | Not controllable |
Classification | ||
IP protection rating | IP54 | |
Certifications | CE | |
Insulation class (DIN EN 60085) | F |
Rated values 50 Hz | ||
Elektrische Nennleistung | 0.9 | kW |
Nominal voltage single-phase | 230 | V |
Nominal current single-phase | 5,3 | A |
Speed | 2850 | U/min |
Volumetric flow rate 50 Hz | ||
Characteristic curve – 0 Pa | 7000 | m³/h |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
