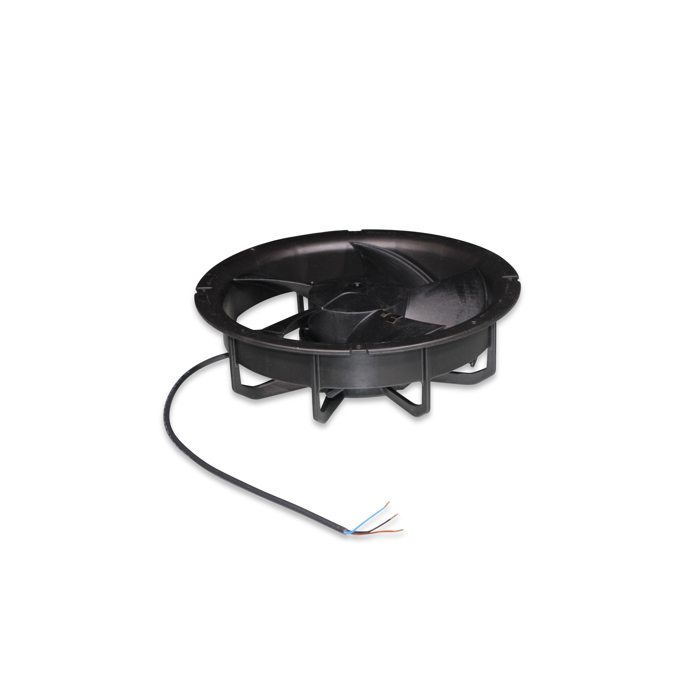

Fan W1G200 230V 0.24A 50/60Hz 2100/1500 rpm
SKU
60-25-0301
Sales unit 1 pc
Availability In stock
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 249.00 | mm |
| Width | 245.00 | mm |
| Height | 103.00 | mm |
| Actual weight | 0.901 | kg |
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | Yes |
| Rated values | ||
| Phases | 1 | Ph |
| Nominal frequency [Hz] | 50/60 | Hz |
| Classification | ||
| IP protection rating | IP54 | |
| Certifications | UL, CSA | |
| Insulation class (DIN EN 60085) | B |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 0.031 | kW |
| Nominal voltage single-phase | 230 | V |
| Nominal current single-phase | 0,24 | A |
| Speed | 1500/2100 | U/min |
| Ambient temperature | -30 - 50 | °C |
| Sound power level Lw | 66 | dB |
| Sound pressure level Lp | 38 | dB |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 0 Pa | 750 | m³/h |
| Characteristic curve – 10 Pa | 710 | m³/h |
| Characteristic curve – 20 Pa | 670 | m³/h |
| Characteristic curve – 30 Pa | 633 | m³/h |
| Characteristic curve – 40 Pa | 595 | m³/h |
| Rated values 60 Hz | ||
| Elektrische Nennleistung | 0.031 | kW |
| Nominal voltage single-phase | 230 | V |
| Nominal current single-phase | 0,24 | A |
| Speed | 1500/2100 | U/min |
Technical datasheet
