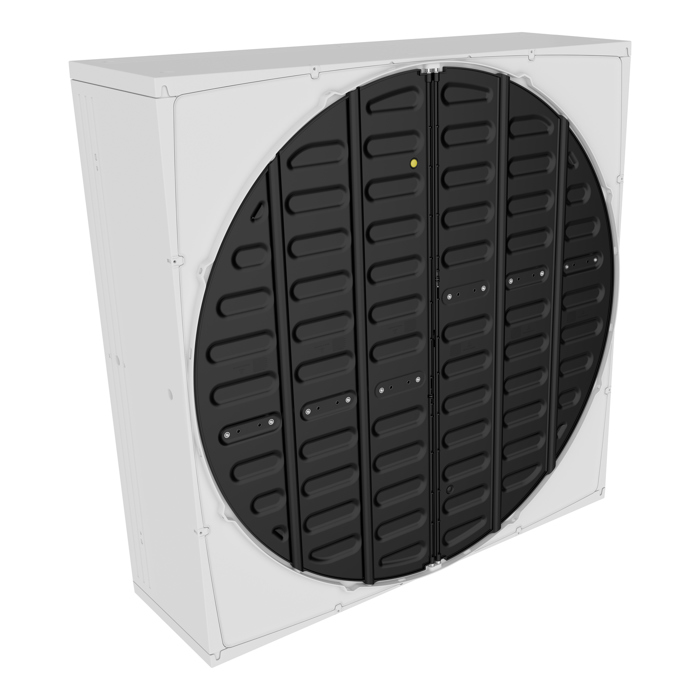

Fan BD-Blue 130-7 0-100% 400-3-50/60 3.1A 48900m³/h

SKU
60-25-4560
Sales unit 1 pc
Availability Available for order

Basic data
Montiert Mounted
Thermal protection contact No
Type Installation at a wall
Weight 75 kg

Rated values
Phases 3 Ph
Nominal frequency [Hz] 50/60 Hz
Control 0-10 V

Classification
IP protection rating IP65
Certifications CE, UL
Efficiency rating (ErP) E15

Dimensions
Width 1380 mm
Height 1380 mm
Total depth 450 mm
Diameter 1270 mm

Rated values 50 Hz
Elektrische Nennleistung 1.75 kW
Nominal voltage star connection 400 V
Voltage tolerance -8 - 10 %
Nominal current star connection 3,1 A
Speed 750 U/min
Power factor 0.94
Ambient temperature -40 - 40 °C
Sound power level Lw 88 dB
Sound pressure level Lp 64 dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa 48900 m³/h
Characteristic curve – 10 Pa 46900 m³/h
Characteristic curve – 20 Pa 44900 m³/h
Characteristic curve – 30 Pa 43100 m³/h
Characteristic curve – 40 Pa 41100 m³/h
Characteristic curve – 50 Pa 39200 m³/h
Characteristic curve – 60 Pa 36600 m³/h
Characteristic curve – 70 Pa 34200 m³/h
Characteristic curve – 80 Pa 31600 m³/h
Characteristic curve – 90 Pa 28900 m³/h
Characteristic curve – 100 Pa 25000 m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa 39 W/(1000m³/h)
Characteristic curve – 10 Pa 41 W/(1000m³/h)
Characteristic curve – 20 Pa 43 W/(1000m³/h)
Characteristic curve – 30 Pa 45 W/(1000m³/h)
Characteristic curve – 40 Pa 47 W/(1000m³/h)
Characteristic curve – 50 Pa 49 W/(1000m³/h)
Characteristic curve – 60 Pa 51 W/(1000m³/h)
Characteristic curve – 70 Pa 54 W/(1000m³/h)
Characteristic curve – 80 Pa 58 W/(1000m³/h)
Characteristic curve – 90 Pa 62 W/(1000m³/h)
Characteristic curve – 100 Pa 69 W/(1000m³/h)

Rated values 60 Hz
Elektrische Nennleistung 1.748 kW
Nominal voltage star connection 400 V
Voltage tolerance -8 - 10 %
Nominal current delta connection 3,1 A
Speed 750 U/min
Power factor 0.94
Ambient temperature -40 - 40 °C
Sound power level Lw 88 dB
Sound pressure level Lp 64 dB

Volumetric flow rate 60 Hz
Characteristic curve – 0 Pa 48900 m³/h
Characteristic curve – 10 Pa 46900 m³/h
Characteristic curve – 20 Pa 43100 m³/h
Characteristic curve – 30 Pa 41100 m³/h
Characteristic curve – 40 Pa 39200 m³/h
Characteristic curve – 50 Pa 36600 m³/h
Characteristic curve – 60 Pa 34200 m³/h
Characteristic curve – 70 Pa 31600 m³/h
Characteristic curve – 80 Pa 28900 m³/h
Characteristic curve – 90 Pa 25000 m³/h

Spec. power 60 Hz
Characteristic curve – 0 Pa 39 W/(1000m³/h)
Characteristic curve – 10 Pa 41 W/(1000m³/h)
Characteristic curve – 20 Pa 43 W/(1000m³/h)
Characteristic curve – 30 Pa 45 W/(1000m³/h)
Characteristic curve – 40 Pa 47 W/(1000m³/h)
Characteristic curve – 50 Pa 49 W/(1000m³/h)
Characteristic curve – 60 Pa 51 W/(1000m³/h)
Characteristic curve – 70 Pa 54 W/(1000m³/h)
Characteristic curve – 80 Pa 58 W/(1000m³/h)
Characteristic curve – 90 Pa 62 W/(1000m³/h)
Characteristic curve – 100 Pa 69 W/(1000m³/h)
Technical datasheet
User manual
