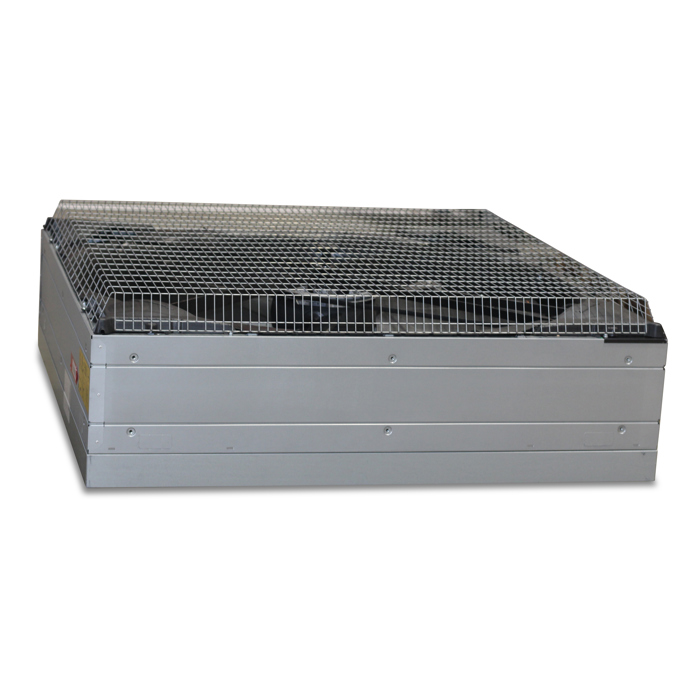

Fan BD-V140-3-2.0HP E15 50300m³ 400-3-50 assembled Sales unit 1 pc
Availability Upon request
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 1478.00 mm Width 1478.00 mm Height 663.00 mm Actual weight 80.892 kg
Basic data Montiert Mounted Type Installation at a wall
Rated values Phases 3 Ph Nominal frequency [Hz] 50 Hz Control Not controllable
Classification IP protection rating IP55 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Dimensions Width 1480 mm Height 1480 mm Total depth 548 mm Diameter 1375 mm
Rated values 50 Hz Elektrische Nennleistung 1.65 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Voltage tolerance -20 - 10 % Nominal current delta connection 5,6 A Nominal current star connection 3,3 A Speed 535 U/min Ambient temperature -25 - 40 °C Sound power level Lw 90 dB Sound pressure level Lp 65 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 50290 m³/h Characteristic curve – 10 Pa 48381 m³/h Characteristic curve – 20 Pa 45956 m³/h Characteristic curve – 30 Pa 43642 m³/h Characteristic curve – 40 Pa 41488 m³/h Characteristic curve – 50 Pa 39022 m³/h Characteristic curve – 60 Pa 36021 m³/h Characteristic curve – 70 Pa 32493 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 32.5 W/(1000m³/h) Characteristic curve – 10 Pa 35.4 W/(1000m³/h) Characteristic curve – 20 Pa 37.8 W/(1000m³/h) Characteristic curve – 30 Pa 40.5 W/(1000m³/h) Characteristic curve – 40 Pa 43.5 W/(1000m³/h) Characteristic curve – 50 Pa 46.8 W/(1000m³/h) Characteristic curve – 60 Pa 50.7 W/(1000m³/h) Characteristic curve – 70 Pa 56.5 W/(1000m³/h)
Illustrations may show accessories that are not included in the scope of delivery.
