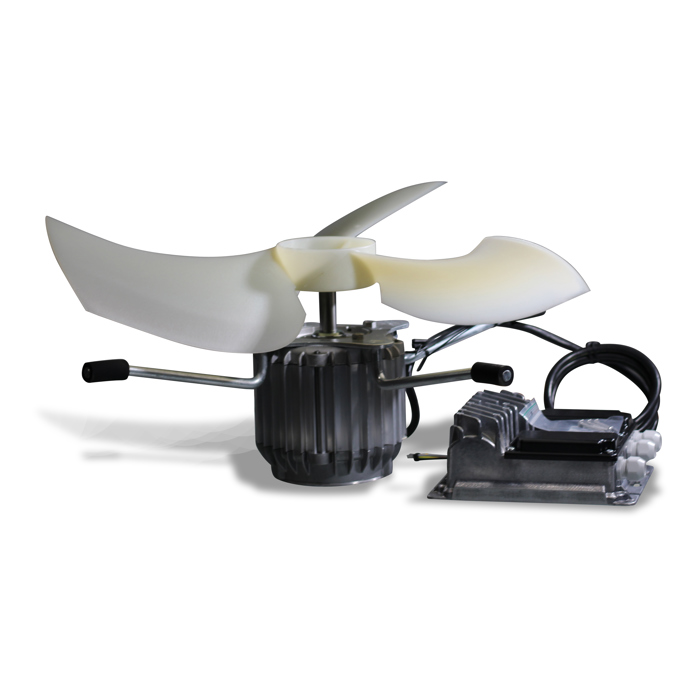

Fan LPC-11 1Ph 50/60Hz 230V 13900m³ f/CL-600
SKU
60-41-9182
Sales unit 1 pc
Availability Upon request
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Successor available
SKU 60-41-9188 Fan LPC-11-2A 1Ph 50/60Hz 230V 14200m³ f/CL-600 In stock To Item
| Dimensions | ||
| Length | 734.00 | mm |
| Width | 599.00 | mm |
| Height | 306.00 | mm |
| Actual weight | 16.589 | kg |
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | No | |
| Chimney | 600 - CL 600 |
| Rated values | ||
| Phases | 1 | Ph |
| Nominal frequency [Hz] | 50/60 | Hz |
| Control | 0-10 V |
| Classification | ||
| IP protection rating | IP55 | |
| Certifications | CE | |
| Efficiency rating (ErP) | E15 |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 0.8 | kW |
| Nominal voltage single-phase | 230 | V |
| Voltage tolerance | -10 - 10 | % |
| Nominal current single-phase | 4,2 | A |
| Speed | 1100 | U/min |
| Power factor | 0.99 | |
| Ambient temperature | -40 - 40 | °C |
| Sound power level Lw | 85 | dB |
| Sound pressure level Lp | 57 | dB |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 10 Pa | 13400 | m³/h |
| Characteristic curve – 20 Pa | 13100 | m³/h |
| Characteristic curve – 30 Pa | 12900 | m³/h |
| Characteristic curve – 40 Pa | 12500 | m³/h |
| Characteristic curve – 50 Pa | 12000 | m³/h |
| Characteristic curve – 60 Pa | 11600 | m³/h |
| Rated values 60 Hz | ||
| Elektrische Nennleistung | 0.8 | kW |
| Nominal voltage single-phase | 230 | V |
| Voltage tolerance | -10 - 10 | % |
| Nominal current single-phase | 4,2 | A |
| Speed | 1100 | U/min |
| Power factor | 0.99 | |
| Ambient temperature | -40 - 40 | °C |
| Sound power level Lw | 85 | dB |
| Sound pressure level Lp | 57 | dB |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
