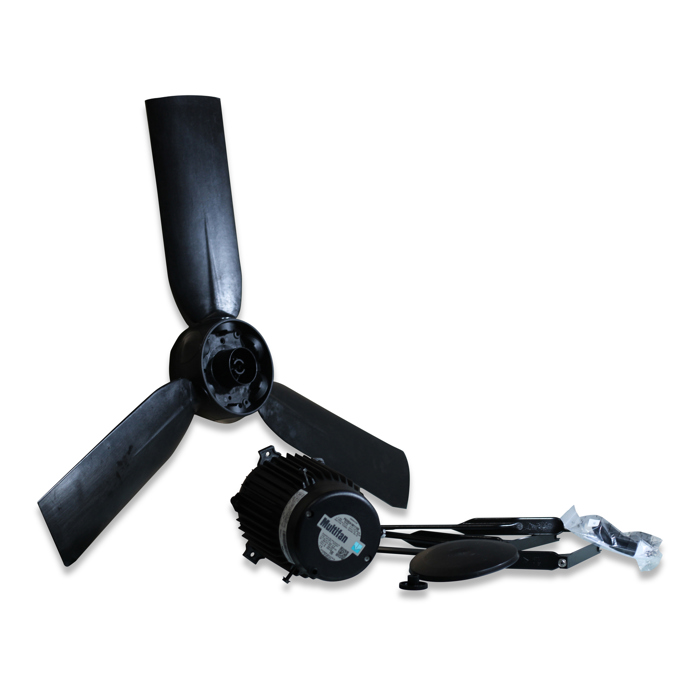

Fan incorporable 6D92-3PG28-Q 25000m³ 400V 1130W 3.2A
SKU
60-47-6992
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 752.00 | mm |
| Width | 233.00 | mm |
| Height | 256.00 | mm |
| Actual weight | 14.925 | kg |
| Basic data | ||
| Montiert | Mounted | |
| Type | Installation in pipe |
| Rated values | ||
| Phases | 3 | Ph |
| Nominal frequency [Hz] | 50 | Hz |
| Control | Frequency converter / Transformer |
| Classification | ||
| IP protection rating | IP55 | |
| Certifications | CE | |
| Insulation class (DIN EN 60085) | F | |
| Efficiency rating (ErP) | E15 |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 1.1 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Nominal current delta connection | 4,6 | A |
| Nominal current star connection | 2,7 | A |
| Speed | 885 | U/min |
| Ambient temperature | -25 - 40 | °C |
| Sound power level Lw | 89 | dB |
| Sound pressure level Lp | 64 | dB |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 0 Pa | 24700 | m³/h |
| Characteristic curve – 10 Pa | 23900 | m³/h |
| Characteristic curve – 20 Pa | 23100 | m³/h |
| Characteristic curve – 30 Pa | 22300 | m³/h |
| Characteristic curve – 40 Pa | 21350 | m³/h |
| Characteristic curve – 50 Pa | 20400 | m³/h |
| Characteristic curve – 60 Pa | 19267 | m³/h |
| Characteristic curve – 70 Pa | 18133 | m³/h |
| Characteristic curve – 80 Pa | 17000 | m³/h |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
