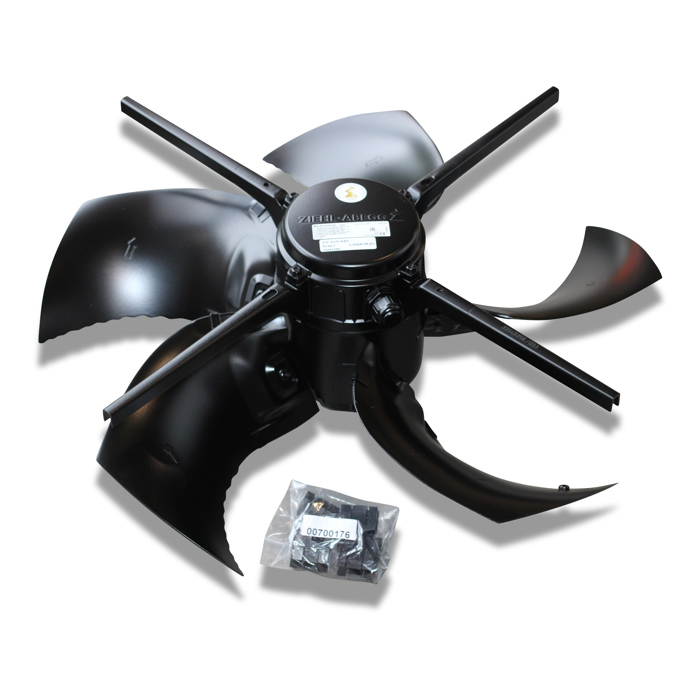

Fan FF063-6DT 3x400V 50/60Hz 1.3/1.5A f/tube Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 630.00 mm Width 633.00 mm Height 210.00 mm Actual weight 12.828 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation in pipe Chimney 630 - BD 650
Rated values Phases 3 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.54 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 2,2 A Nominal current star connection 1,25 A Speed 930 U/min Power factor 0.6 Ambient temperature -40 - 70 °C Sound power level Lw 71 dB Sound pressure level Lp 46 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 12921 m³/h Characteristic curve – 10 Pa 12504 m³/h Characteristic curve – 20 Pa 12075 m³/h Characteristic curve – 30 Pa 11523 m³/h Characteristic curve – 40 Pa 10741 m³/h Characteristic curve – 50 Pa 9713 m³/h Characteristic curve – 60 Pa 7291 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 33.4 W/(1000m³/h) Characteristic curve – 10 Pa 35.5 W/(1000m³/h) Characteristic curve – 20 Pa 37.4 W/(1000m³/h) Characteristic curve – 30 Pa 39.9 W/(1000m³/h) Characteristic curve – 40 Pa 44 W/(1000m³/h) Characteristic curve – 50 Pa 49.5 W/(1000m³/h) Characteristic curve – 60 Pa 63.9 W/(1000m³/h)
Rated values 60 Hz Elektrische Nennleistung 0.8 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 2,5 A Nominal current star connection 1,4 A Speed 1050 U/min Power factor 0.81 Ambient temperature -40 - 70 °C
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
