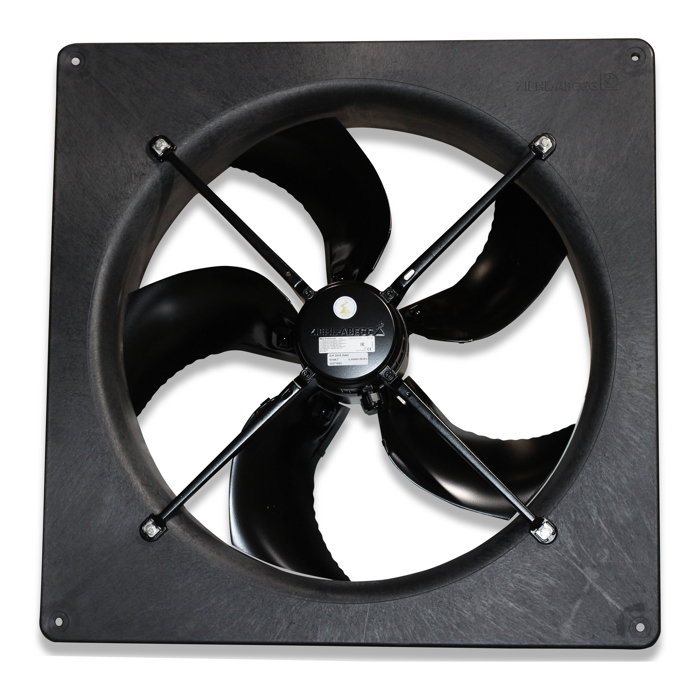

Fan FF063-6DQ 3x400V 50/60Hz 1.3/1.5A Sales unit 1 pc
Availability In stock
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 800.00 mm Width 800.00 mm Height 215.00 mm Actual weight 20.555 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation at a wall
Rated values Phases 3 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Dimensions Width 750 mm Height 805 mm Total depth 218 mm Diameter 686 mm
Rated values 50 Hz Elektrische Nennleistung 0.54 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 2,2 A Nominal current star connection 1,25 A Speed 930 U/min Power factor 0.6 Ambient temperature -10 - 40 °C Sound power level Lw 71 dB Sound pressure level Lp 46 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 12297 m³/h Characteristic curve – 10 Pa 11924 m³/h Characteristic curve – 20 Pa 11547 m³/h Characteristic curve – 30 Pa 11163 m³/h Characteristic curve – 40 Pa 10737 m³/h Characteristic curve – 50 Pa 10248 m³/h Characteristic curve – 60 Pa 9691 m³/h Characteristic curve – 70 Pa 8823 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 38.6 W/(1000m³/h) Characteristic curve – 10 Pa 41.1 W/(1000m³/h) Characteristic curve – 20 Pa 43.3 W/(1000m³/h) Characteristic curve – 30 Pa 45.7 W/(1000m³/h) Characteristic curve – 40 Pa 49.3 W/(1000m³/h) Characteristic curve – 50 Pa 51.7 W/(1000m³/h) Characteristic curve – 60 Pa 54.7 W/(1000m³/h) Characteristic curve – 70 Pa 60.1 W/(1000m³/h)
Rated values 60 Hz Elektrische Nennleistung 0.8 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 2,5 A Nominal current star connection 1,4 A Speed 1050 U/min Power factor 0.81 Ambient temperature -10 - 40 °C
Illustrations may show accessories that are not included in the scope of delivery.
