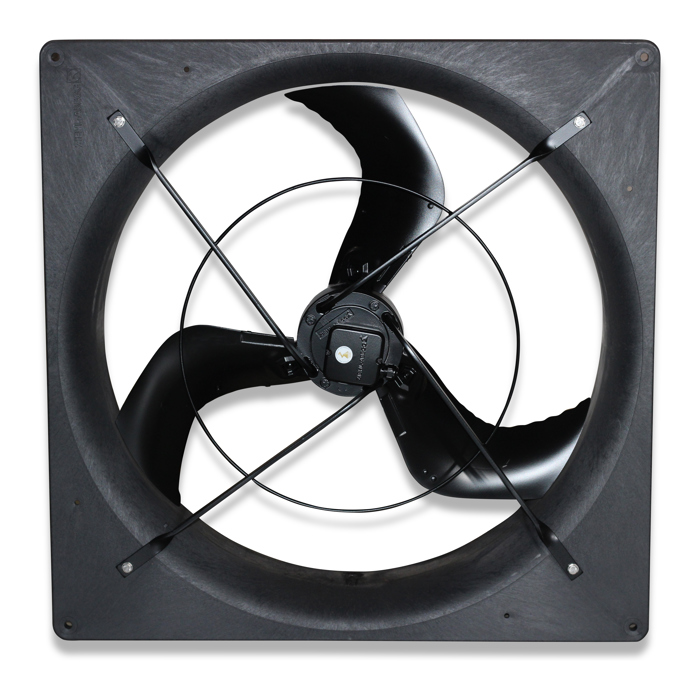

Fan FF091-6DQ 3x400V 50/60Hz 1.9/2.4A Sales unit 1 pc
Availability In stock
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 1065.00 mm Width 1065.00 mm Height 230.00 mm Actual weight 33.349 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation at a wall
Rated values Phases 3 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Dimensions Width 1010 mm Height 1070 mm Total depth 261 mm Diameter 1010 mm
Rated values 50 Hz Elektrische Nennleistung 0.92 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 3,3 A Nominal current star connection 1,9 A Speed 880 U/min Power factor 0.69 Ambient temperature -10 - 40 °C Sound power level Lw 75 dB Sound pressure level Lp 50 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 23454 m³/h Characteristic curve – 10 Pa 22635 m³/h Characteristic curve – 20 Pa 21814 m³/h Characteristic curve – 30 Pa 20992 m³/h Characteristic curve – 40 Pa 19949 m³/h Characteristic curve – 50 Pa 18963 m³/h Characteristic curve – 60 Pa 18005 m³/h Characteristic curve – 70 Pa 17001 m³/h Characteristic curve – 80 Pa 15751 m³/h Characteristic curve – 90 Pa 13821 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 35.4 W/(1000m³/h) Characteristic curve – 10 Pa 37.5 W/(1000m³/h) Characteristic curve – 20 Pa 40.1 W/(1000m³/h) Characteristic curve – 30 Pa 42.4 W/(1000m³/h) Characteristic curve – 40 Pa 45.1 W/(1000m³/h) Characteristic curve – 50 Pa 47.9 W/(1000m³/h) Characteristic curve – 60 Pa 50.5 W/(1000m³/h) Characteristic curve – 70 Pa 53.5 W/(1000m³/h) Characteristic curve – 80 Pa 57.3 W/(1000m³/h) Characteristic curve – 90 Pa 64.5 W/(1000m³/h)
Rated values 60 Hz Elektrische Nennleistung 1.3 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 4,2 A Nominal current star connection 2,4 A Speed 930 U/min Power factor 0.77 Ambient temperature -10 - 40 °C
Illustrations may show accessories that are not included in the scope of delivery.
