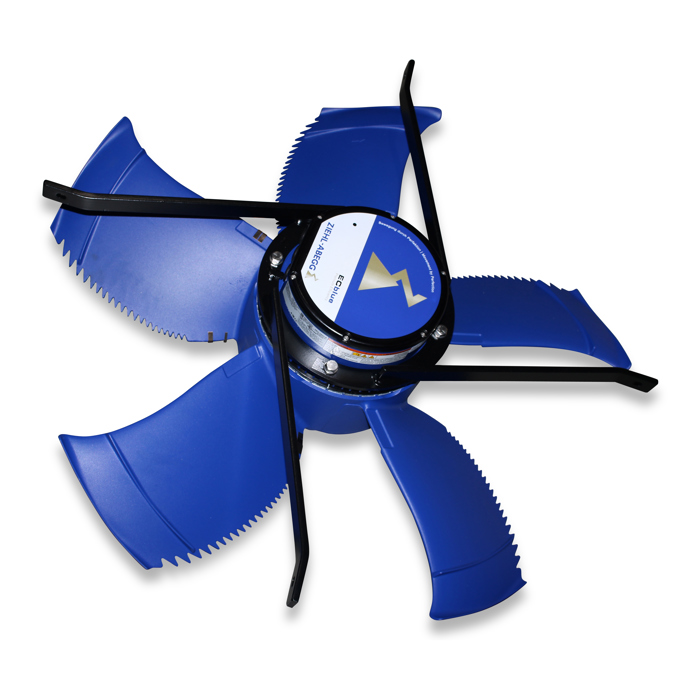

Fan ECblue2 FN091-ZIT 33300m³ 3Ph 400V 50/60Hz f/pipe Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Actual weight 34.655 kg
Basic data Montiert Mounted Type Installation in pipe Chimney 920 - BD & CL920
Rated values Phases 3 Ph Nominal frequency [Hz] 50/60 Hz Control 0-10 V
Classification IP protection rating IP55 Certifications CE, UL Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 3.5 kW Nominal voltage delta connection 380-480 V Nominal current delta connection 5,6-4,4 A Speed 1130 U/min Power factor 1 Ambient temperature -35 - 40 °C Sound power level Lw 84 dB Sound pressure level Lp 59 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 33428 m³/h Characteristic curve – 10 Pa 33142 m³/h Characteristic curve – 20 Pa 32714 m³/h Characteristic curve – 30 Pa 32285 m³/h Characteristic curve – 40 Pa 31857 m³/h Characteristic curve – 50 Pa 31571 m³/h Characteristic curve – 60 Pa 31285 m³/h Characteristic curve – 70 Pa 30714 m³/h Characteristic curve – 80 Pa 30428 m³/h Characteristic curve – 90 Pa 30000 m³/h Characteristic curve – 100 Pa 29571 m³/h Characteristic curve – 110 Pa 29142 m³/h Characteristic curve – 120 Pa 28712 m³/h Characteristic curve – 140 Pa 28000 m³/h Characteristic curve – 160 Pa 27142 m³/h Characteristic curve – 180 Pa 26285 m³/h Characteristic curve – 200 Pa 25012 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 65.1 W/(1000m³/h) Characteristic curve – 10 Pa 67.2 W/(1000m³/h) Characteristic curve – 20 Pa 69.7 W/(1000m³/h) Characteristic curve – 30 Pa 72.2 W/(1000m³/h) Characteristic curve – 40 Pa 74.8 W/(1000m³/h) Characteristic curve – 50 Pa 77.4 W/(1000m³/h) Characteristic curve – 60 Pa 80 W/(1000m³/h) Characteristic curve – 70 Pa 82.5 W/(1000m³/h) Characteristic curve – 80 Pa 85.1 W/(1000m³/h) Characteristic curve – 90 Pa 87.8 W/(1000m³/h) Characteristic curve – 100 Pa 90.6 W/(1000m³/h) Characteristic curve – 110 Pa 93.4 W/(1000m³/h) Characteristic curve – 120 Pa 96.3 W/(1000m³/h) Characteristic curve – 140 Pa 102.2 W/(1000m³/h) Characteristic curve – 160 Pa 108.9 W/(1000m³/h) Characteristic curve – 180 Pa 116 W/(1000m³/h) Characteristic curve – 200 Pa 123 W/(1000m³/h)
Rated values 60 Hz Elektrische Nennleistung 3.5 kW Nominal voltage delta connection 380-480 V Nominal current delta connection 5.6-4.4 A Speed 1130 U/min Power factor 1 Ambient temperature -35 - 40 °C Sound power level Lw 84 dB Sound pressure level Lp 59 dB
Volumetric flow rate 60 Hz Characteristic curve – 0 Pa 36102 m³/h Characteristic curve – 10 Pa 35696 m³/h Characteristic curve – 20 Pa 35282 m³/h Characteristic curve – 30 Pa 34860 m³/h Characteristic curve – 40 Pa 34433 m³/h Characteristic curve – 50 Pa 34000 m³/h Characteristic curve – 60 Pa 33564 m³/h Characteristic curve – 70 Pa 33123 m³/h Characteristic curve – 80 Pa 32671 m³/h Characteristic curve – 90 Pa 32203 m³/h Characteristic curve – 100 Pa 31710 m³/h
Illustrations may show accessories that are not included in the scope of delivery.
