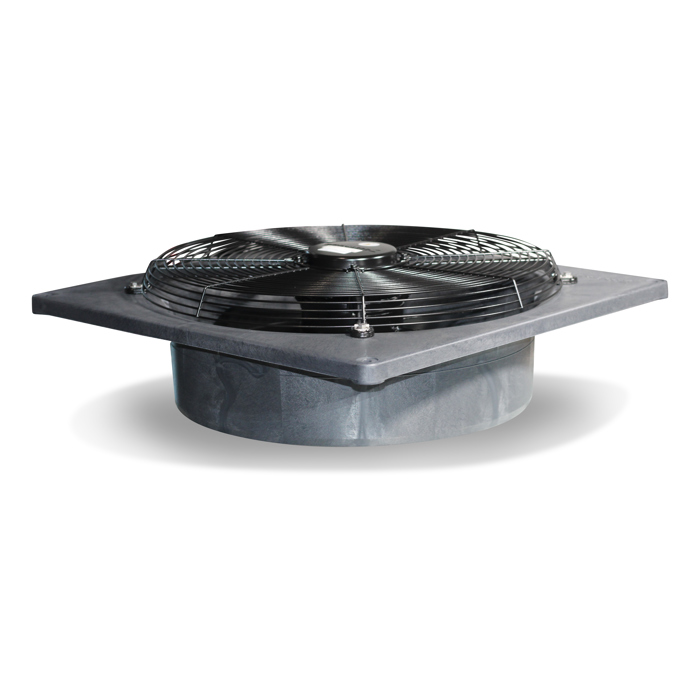

Fan f/circul. air FC050-4EQ 1Ph 50Hz 230V 2,3A 8000m³/h Sales unit 1 pc
Availability In stock
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 650.00 mm Width 650.00 mm Height 230.00 mm Actual weight 16.683 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation at a wall
Rated values Phases 1 Ph Nominal frequency [Hz] 50 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Dimensions Width 615 mm Height 655 mm Total depth 221 mm Diameter 566 mm
Rated values 50 Hz Elektrische Nennleistung 0.51 kW Nominal voltage single-phase 230 V Nominal current single-phase 2,3 A Speed 1310 U/min Ambient temperature -25 - 40 °C Sound power level Lw 76 dB Sound pressure level Lp 51 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 7988 m³/h Characteristic curve – 10 Pa 7801 m³/h Characteristic curve – 20 Pa 7615 m³/h Characteristic curve – 30 Pa 7431 m³/h Characteristic curve – 40 Pa 7238 m³/h Characteristic curve – 50 Pa 7033 m³/h Characteristic curve – 60 Pa 6803 m³/h Characteristic curve – 70 Pa 6573 m³/h Characteristic curve – 80 Pa 6347 m³/h Characteristic curve – 90 Pa 6091 m³/h Characteristic curve – 100 Pa 5815 m³/h Characteristic curve – 110 Pa 5481 m³/h Characteristic curve – 120 Pa 4984 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 53.8 W/(1000m³/h) Characteristic curve – 10 Pa 56.4 W/(1000m³/h) Characteristic curve – 20 Pa 58.4 W/(1000m³/h) Characteristic curve – 30 Pa 61.2 W/(1000m³/h) Characteristic curve – 40 Pa 63.5 W/(1000m³/h) Characteristic curve – 50 Pa 68.2 W/(1000m³/h) Characteristic curve – 60 Pa 71.3 W/(1000m³/h)
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
