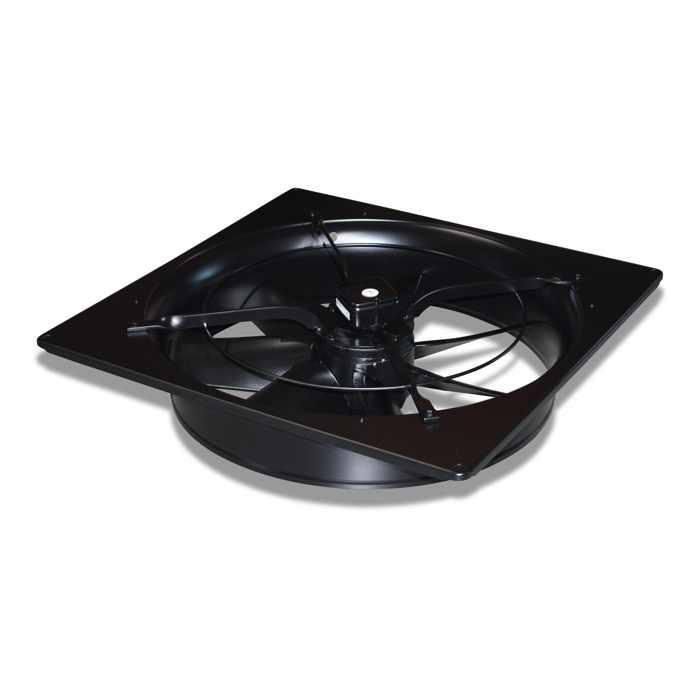

Fan FC071-6EQ 16450m³ 230V 785W 4.1A
SKU
60-47-9171
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 805.00 | mm |
| Width | 890.00 | mm |
| Height | 235.00 | mm |
| Actual weight | 36.720 | kg |
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | Yes | |
| Type | Installation at a wall |
| Rated values | ||
| Phases | 1 | Ph |
| Nominal frequency [Hz] | 50 | Hz |
| Control | Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac |
| Classification | ||
| IP protection rating | IP54 | |
| Certifications | CE | |
| Insulation class (DIN EN 60085) | F | |
| Efficiency rating (ErP) | E15 |
| Dimensions | ||
| Width | 810 | mm |
| Height | 850 | mm |
| Total depth | 272 | mm |
| Diameter | 765 | mm |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 0.89 | kW |
| Nominal voltage single-phase | 230 | V |
| Nominal current single-phase | 4,1 | A |
| Speed | 850 | U/min |
| Ambient temperature | -25 - 60 | °C |
| Sound power level Lw | 79 | dB |
| Sound pressure level Lp | 54 | dB |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 0 Pa | 16083 | m³/h |
| Characteristic curve – 10 Pa | 15653 | m³/h |
| Characteristic curve – 20 Pa | 15176 | m³/h |
| Characteristic curve – 30 Pa | 14669 | m³/h |
| Characteristic curve – 40 Pa | 14134 | m³/h |
| Characteristic curve – 50 Pa | 13556 | m³/h |
| Characteristic curve – 60 Pa | 13020 | m³/h |
| Characteristic curve – 70 Pa | 12399 | m³/h |
| Spec. power 50 Hz | ||
| Characteristic curve – 0 Pa | 44.1 | W/(1000m³/h) |
| Characteristic curve – 10 Pa | 46.6 | W/(1000m³/h) |
| Characteristic curve – 20 Pa | 49.4 | W/(1000m³/h) |
| Characteristic curve – 30 Pa | 53.1 | W/(1000m³/h) |
| Characteristic curve – 40 Pa | 56.2 | W/(1000m³/h) |
| Characteristic curve – 50 Pa | 60.1 | W/(1000m³/h) |
| Characteristic curve – 60 Pa | 62.9 | W/(1000m³/h) |
| Characteristic curve – 70 Pa | 65.7 | W/(1000m³/h) |
Technical datasheet
Leaflet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
