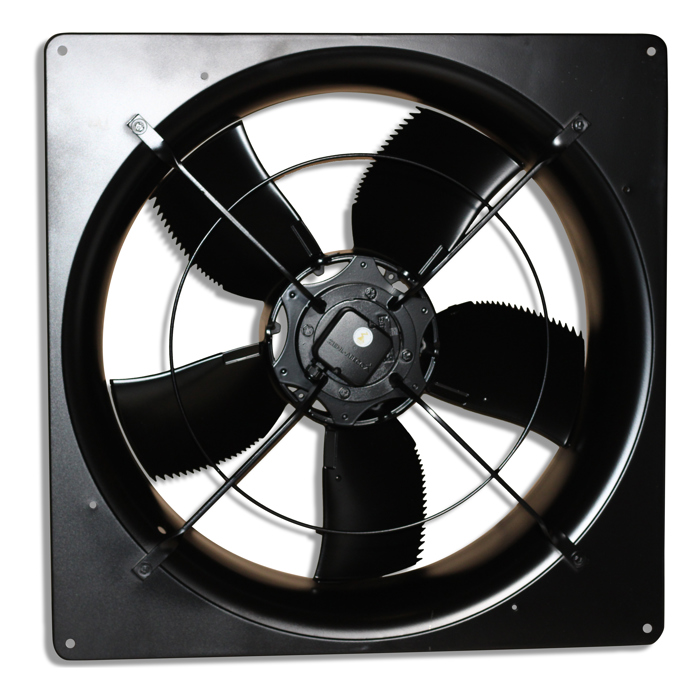

Fan FN080-6EQ 230V 1Ph 50/60Hz 6.2A 19600m³/h Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 968.00 mm Width 968.00 mm Height 223.00 mm Actual weight 52.892 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation at a wall
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Dimensions Width 910 mm Height 970 mm Total depth 319 mm Diameter 870 mm
Rated values 50 Hz Elektrische Nennleistung 1.3 kW Nominal voltage single-phase 230 V Nominal current single-phase 6,2 A Speed 870 U/min Ambient temperature -25 - 70 °C Sound power level Lw 84 dB Sound pressure level Lp 59 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 19629 m³/h Characteristic curve – 10 Pa 19252 m³/h Characteristic curve – 20 Pa 18862 m³/h Characteristic curve – 30 Pa 18357 m³/h Characteristic curve – 40 Pa 17849 m³/h Characteristic curve – 50 Pa 17312 m³/h Characteristic curve – 60 Pa 16766 m³/h Characteristic curve – 70 Pa 16207 m³/h Characteristic curve – 80 Pa 15598 m³/h Characteristic curve – 90 Pa 14964 m³/h Characteristic curve – 100 Pa 14320 m³/h Characteristic curve – 110 Pa 13665 m³/h Characteristic curve – 120 Pa 12877 m³/h Characteristic curve – 140 Pa 11060 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 50.1 W/(1000m³/h) Characteristic curve – 10 Pa 52.9 W/(1000m³/h) Characteristic curve – 20 Pa 55.1 W/(1000m³/h) Characteristic curve – 30 Pa 57.7 W/(1000m³/h) Characteristic curve – 40 Pa 60.5 W/(1000m³/h) Characteristic curve – 50 Pa 64.1 W/(1000m³/h) Characteristic curve – 60 Pa 67.6 W/(1000m³/h) Characteristic curve – 70 Pa 70.3 W/(1000m³/h) Characteristic curve – 80 Pa 74.8 W/(1000m³/h) Characteristic curve – 90 Pa 80.2 W/(1000m³/h) Characteristic curve – 100 Pa 84.5 W/(1000m³/h) Characteristic curve – 110 Pa 89.8 W/(1000m³/h) Characteristic curve – 120 Pa 97.3 W/(1000m³/h) Characteristic curve – 140 Pa 115.9 W/(1000m³/h)
Rated values 60 Hz Elektrische Nennleistung 1.75 kW Nominal voltage single-phase 230 V Nominal current single-phase 8 A Speed 910 U/min Ambient temperature -25 - 50 °C Sound power level Lw 86 dB Sound pressure level Lp 61 dB
Volumetric flow rate 60 Hz Characteristic curve – 0 Pa 22077 m³/h Characteristic curve – 10 Pa 21605 m³/h Characteristic curve – 20 Pa 21132 m³/h Characteristic curve – 30 Pa 20651 m³/h Characteristic curve – 40 Pa 20158 m³/h Characteristic curve – 50 Pa 19657 m³/h Characteristic curve – 60 Pa 19092 m³/h Characteristic curve – 70 Pa 18527 m³/h Characteristic curve – 80 Pa 17835 m³/h Characteristic curve – 90 Pa 17120 m³/h Characteristic curve – 100 Pa 16444 m³/h Characteristic curve – 110 Pa 15744 m³/h Characteristic curve – 120 Pa 15030 m³/h Characteristic curve – 140 Pa 13524 m³/h Characteristic curve – 160 Pa 11288 m³/h
Illustrations may show accessories that are not included in the scope of delivery.
