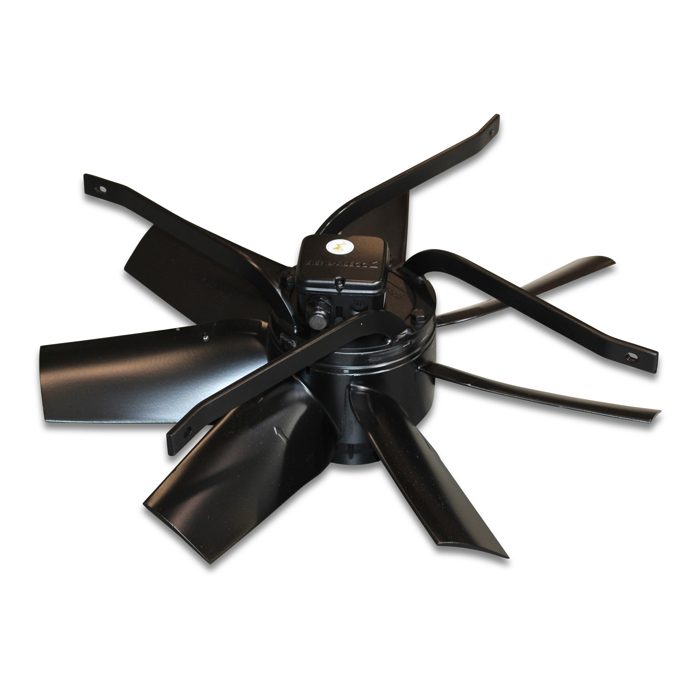

Fan FC071-6DT(R) 17000m³ 400V 780W 1.9A f/tube
SKU
60-47-9571
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 720.00 | mm |
| Width | 720.00 | mm |
| Height | 263.00 | mm |
| Actual weight | 24.000 | kg |
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | Yes | |
| Type | Installation in pipe | |
| Chimney | 710 - BD 730 |
| Rated values | ||
| Phases | 3 | Ph |
| Nominal frequency [Hz] | 50/60 | Hz |
| Control | Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac |
| Classification | ||
| IP protection rating | IP54 | |
| Certifications | CE | |
| Insulation class (DIN EN 60085) | F | |
| Efficiency rating (ErP) | E15 |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 0.89 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Nominal current delta connection | 3,1 | A |
| Nominal current star connection | 1,8 | A |
| Speed | 890 | U/min |
| Power factor | 0.71 | |
| Ambient temperature | -40 - 70 | °C |
| Sound power level Lw | 80 | dB |
| Sound pressure level Lp | 55 | dB |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 0 Pa | 19500 | m³/h |
| Characteristic curve – 10 Pa | 18900 | m³/h |
| Characteristic curve – 20 Pa | 18300 | m³/h |
| Characteristic curve – 30 Pa | 17600 | m³/h |
| Characteristic curve – 40 Pa | 16900 | m³/h |
| Characteristic curve – 50 Pa | 16000 | m³/h |
| Characteristic curve – 60 Pa | 15000 | m³/h |
| Characteristic curve – 70 Pa | 14000 | m³/h |
| Characteristic curve – 80 Pa | 13000 | m³/h |
| Characteristic curve – 90 Pa | 11800 | m³/h |
| Characteristic curve – 100 Pa | 10600 | m³/h |
| Rated values 60 Hz | ||
| Elektrische Nennleistung | 1.2 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Nominal current delta connection | 4 | A |
| Nominal current star connection | 2,3 | A |
| Speed | 960 | U/min |
| Power factor | 0.78 | |
| Ambient temperature | -40 - 70 | °C |
Technical datasheet
