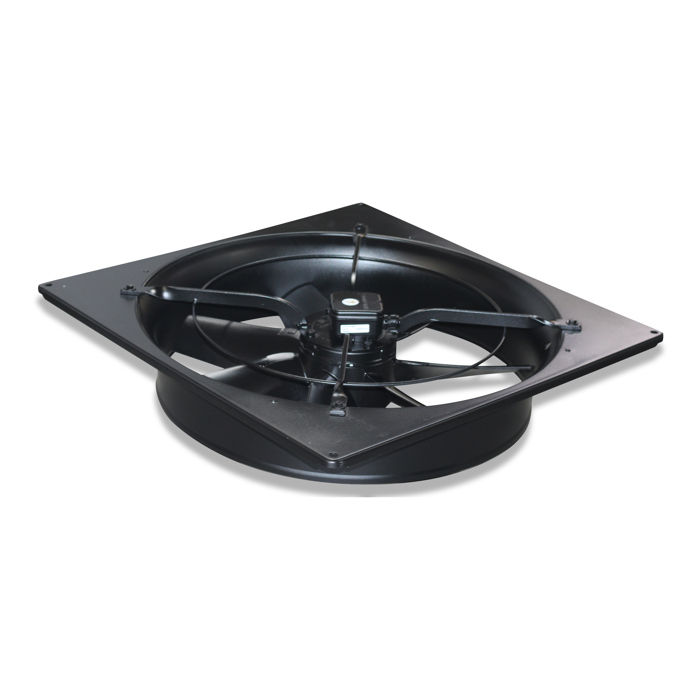

Fan FC071-6DQ 17000m³ 400V 780W 50/60Hz 1.9A Sales unit 1 pc
Availability In stock
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions Length 850.00 mm Width 850.00 mm Height 300.00 mm Actual weight 36.620 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation at a wall
Rated values Phases 3 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Dimensions Width 810 mm Height 850 mm Total depth 272 mm Diameter 765 mm
Rated values 50 Hz Elektrische Nennleistung 0.89 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 3,1 A Nominal current star connection 1,8 A Speed 890 U/min Power factor 0.71 Ambient temperature -40 - 70 °C Sound power level Lw 80 dB Sound pressure level Lp 55 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 16524 m³/h Characteristic curve – 10 Pa 16109 m³/h Characteristic curve – 20 Pa 15694 m³/h Characteristic curve – 30 Pa 15246 m³/h Characteristic curve – 40 Pa 14790 m³/h Characteristic curve – 50 Pa 14303 m³/h Characteristic curve – 60 Pa 13784 m³/h Characteristic curve – 70 Pa 13244 m³/h Characteristic curve – 80 Pa 12647 m³/h Characteristic curve – 90 Pa 11940 m³/h Characteristic curve – 100 Pa 11042 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 45.4 W/(1000m³/h) Characteristic curve – 10 Pa 47.1 W/(1000m³/h) Characteristic curve – 20 Pa 49.7 W/(1000m³/h) Characteristic curve – 30 Pa 52.4 W/(1000m³/h) Characteristic curve – 40 Pa 55.1 W/(1000m³/h) Characteristic curve – 50 Pa 57.3 W/(1000m³/h) Characteristic curve – 60 Pa 60.2 W/(1000m³/h) Characteristic curve – 70 Pa 63.6 W/(1000m³/h) Characteristic curve – 80 Pa 67.4 W/(1000m³/h) Characteristic curve – 90 Pa 72.8 W/(1000m³/h) Characteristic curve – 100 Pa 77.2 W/(1000m³/h)
Rated values 60 Hz Elektrische Nennleistung 1.2 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 4 A Nominal current star connection 2,3 A Speed 960 U/min Power factor 0.78 Ambient temperature -40 - 70 °C
Illustrations may show accessories that are not included in the scope of delivery.
