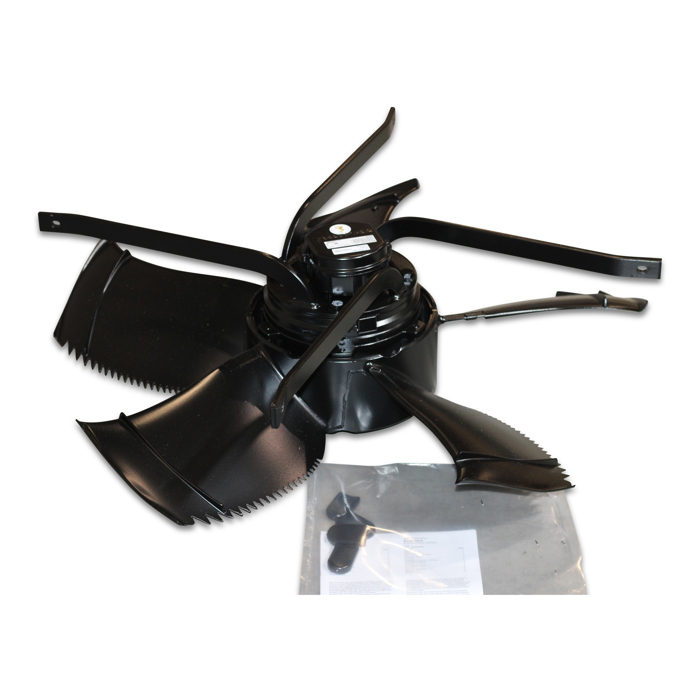

Fan FN091-SDT 24000m³ 3Ph 60Hz 230V 5A f/air scrubber
SKU
60-50-0140
Sales unit 1 pc
Availability In stock
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 910.00 | mm |
| Width | 910.00 | mm |
| Height | 283.00 | mm |
| Actual weight | 60.892 | kg |
| Basic data | ||
| Montiert | Mounted | |
| Thermal protection contact | Yes | |
| Type | Installation in pipe | |
| Chimney | 920 - BD & CL920 |
| Rated values | ||
| Phases | 3 | Ph |
| Nominal frequency [Hz] | 50/60 | Hz |
| Control | Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac |
| Classification | ||
| IP protection rating | IP54 | |
| Certifications | CE | |
| Insulation class (DIN EN 60085) | F | |
| Efficiency rating (ErP) | E15 |
| Rated values 50 Hz | ||
| Elektrische Nennleistung | 1.95 | kW |
| Nominal voltage delta connection | 400 | V |
| Nominal voltage star connection | 230 | V |
| Nominal current delta connection | 4,4 | A |
| Nominal current star connection | 2,3 | A |
| Speed | 880/720 | U/min |
| Power factor | 0.64 | |
| Ambient temperature | -40 - 70 | °C |
| Sound power level Lw | 78 | dB |
| Sound pressure level Lp | 53 | dB |
| Volumetric flow rate 50 Hz | ||
| Characteristic curve – 0 Pa | 29191 | m³/h |
| Characteristic curve – 10 Pa | 28529 | m³/h |
| Characteristic curve – 20 Pa | 27868 | m³/h |
| Characteristic curve – 30 Pa | 27206 | m³/h |
| Characteristic curve – 40 Pa | 26610 | m³/h |
| Characteristic curve – 50 Pa | 26014 | m³/h |
| Characteristic curve – 60 Pa | 25367 | m³/h |
| Characteristic curve – 70 Pa | 24602 | m³/h |
| Characteristic curve – 80 Pa | 23853 | m³/h |
| Characteristic curve – 90 Pa | 23114 | m³/h |
| Characteristic curve – 100 Pa | 22236 | m³/h |
| Characteristic curve – 110 Pa | 21268 | m³/h |
| Characteristic curve – 120 Pa | 20188 | m³/h |
| Characteristic curve – 140 Pa | 17886 | m³/h |
| Characteristic curve – 160 Pa | 14117 | m³/h |
| Characteristic curve – 180 Pa | 10766 | m³/h |
| Rated values 60 Hz | ||
| Elektrische Nennleistung | 2.8 | kW |
| Nominal voltage delta connection | 400 | V |
| Nominal voltage star connection | 230 | V |
| Nominal current delta connection | 5 | A |
| Nominal current star connection | 2,8 | A |
| Speed | 970/710 | U/min |
| Power factor | 0.8 | |
| Ambient temperature | -40 - 70 | °C |
