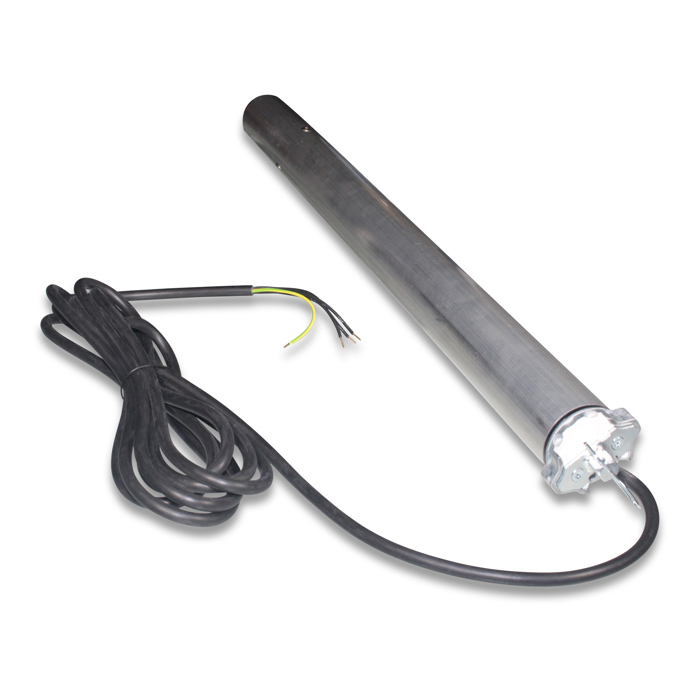

Winch motor RMA20 230V 50Hz 1.5A 12r/min 50Nm
SKU
60-50-3381
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions | ||
Length | 742.00 | mm |
Width | 307.00 | mm |
Height | 58.00 | mm |
Actual weight | 4.145 | kg |
Rated values | ||
Frequency | 50 | Hz |
Controllable by | nicht regelbar |
Classification | ||
IP protection rating | IP44 | IP |
Rated values 50 Hz | ||
Nominal power | 0,345 | kW |
Nominal voltage single-phase | 230 | V |
Current consumption delta connection | 1,5 | A |
Nominal torque motor | 50 | Nm |
Gear speed | 12 | r/min |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
