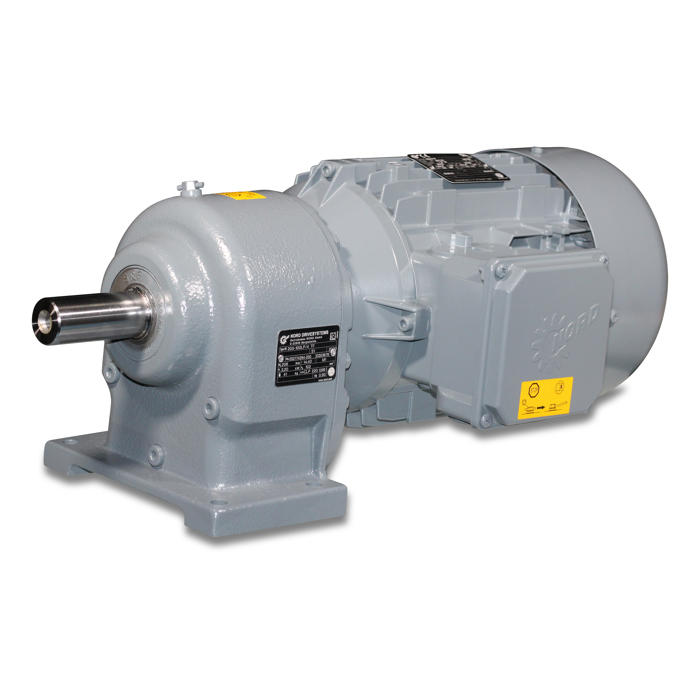

Mot-g 2.20 230/400 50 98r shaft 30x70mm
SKU
71-51-3425
Sales unit 1 pc
Availability Upon request
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions | ||
Length | 506.00 | mm |
Width | 269.00 | mm |
Height | 211.00 | mm |
Actual weight | 35.759 | kg |
Basic data | ||
Motor size | 100L |
Rated values | ||
Frequency | 50 | Hz |
Pole pair | 50 |
Classification | ||
IP protection rating | IP55 | IP |
Certifications | CE |
Rated values 50 Hz | ||
Nominal power | 2,2 | kW |
Nominal voltage delta connection | 230 | V |
Nominal voltage star connection | 400 | V |
Current consumption delta connection | 8,05 | A |
Current consumption star connection | 4,65 | A |
Motor speed | 1445 | r/min |
Nominal torque motor | 14,53 | Nm |
Gear speed | 100 | r/min |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
