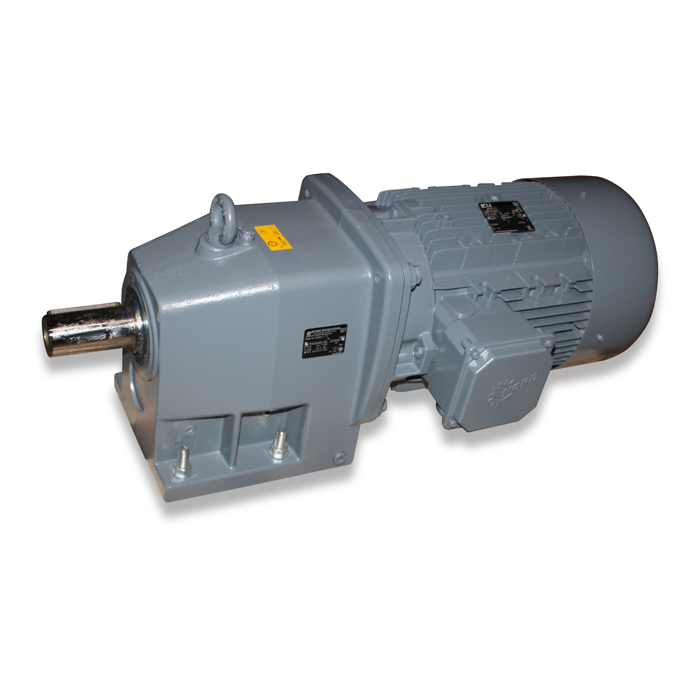

Mot-g 5.5 400/690 50 3 81r shaft 45x90mm
SKU
71-51-3477
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions | ||
Length | 795.00 | mm |
Width | 338.00 | mm |
Height | 518.00 | mm |
Actual weight | 105.000 | kg |
Basic data | ||
Motor size | 132S | |
Lubricants | Mineralöl ISO VG 220 | Typ |
Rated values | ||
Frequency | 50 | Hz |
Pole pair | 50 |
Classification | ||
IP protection rating | IP55 | IP |
Dimensions | ||
Output shaft diameter | Welle 40 | Ø |
Output shaft length | Welle 40 | Länge |
Rated values 50 Hz | ||
Nominal power | 5,5 | kW |
Nominal voltage delta connection | 400 | V |
Nominal voltage star connection | 690 | V |
Current consumption delta connection | 10,7 | A |
Current consumption star connection | 6,18 | A |
Motor speed | 1460 | r/min |
Nominal torque motor | 35,97 | Nm |
Gear speed | 77 | r/min |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
