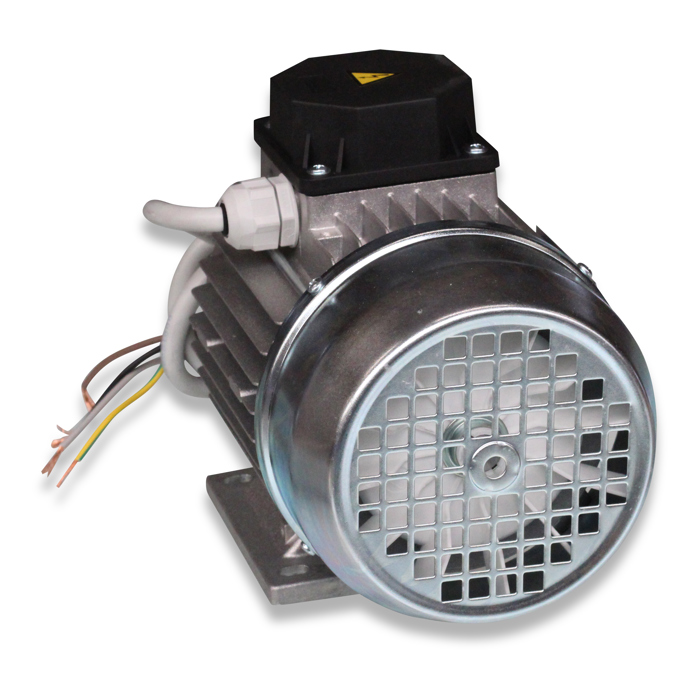

Electric motor 0.50HP 230/400V 50/60Hz 3Ph OneSpeed f/EM36
SKU
82-90-0130
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 248.00 | mm |
| Width | 189.00 | mm |
| Height | 173.00 | mm |
| Actual weight | 6.211 | kg |
| Basic data | ||
| Running mode | S1 | S1-S10 |
| Design electric motor | B3 | |
| Weight | 6.3 | kg |
| Rated values | ||
| Phases | 3 | Anzahl |
| Frequency | 50 | Hz |
| Pole pair | 2 | |
| Type of connection | Star/Delta |
| Classification | ||
| IP protection rating | IP55 | IP |
| Insulation class | F | |
| Certifications | CE |
| Dimensions | ||
| Output shaft length | 30 | Länge mm |
| Rated values 50 Hz | ||
| Nominal power | 0,37 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption star connection | 1,1 | A |
| Power factor | 0.71 | |
| Efficiency | 71.5 | |
| Motor speed | 1400 | r/min |
| Nennmoment Getriebe [Volllast] | 2.49 | Nm |
| Rated values 60 Hz | ||
| Nominal power | 0,37 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption star connection | 1 | A |
| Power factor | 0.77 | |
| Efficiency | 72.1 | |
| Motor speed | 1660 | r/min |
| Nennmoment Getriebe [Volllast] | 2.49 | Nm |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
