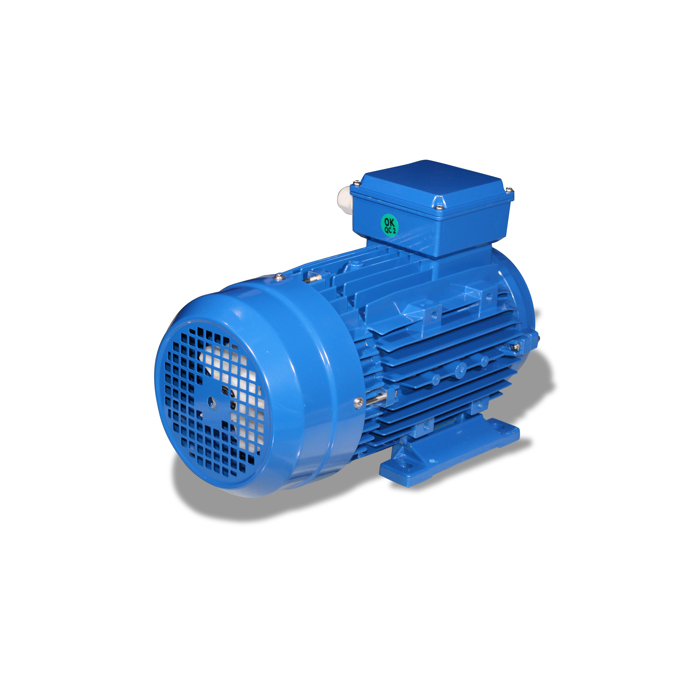

Electric motor 1.50kW 230/400V 50/60Hz 1500/1800r B3
SKU
90-00-1533
Sales unit 1 pc
Availability Upon request
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 380.00 | mm |
| Width | 182.00 | mm |
| Height | 221.00 | mm |
| Actual weight | 19.070 | kg |
| Basic data | ||
| Running mode | S1 | S1-S10 |
| Thermal protection | PTC thermistor | |
| Design electric motor | B3 | |
| Motor size | 90 | |
| Norm | IEC60034 | |
| Weight | 21 | kg |
| Rated values | ||
| Phases | 3 | Anzahl |
| Frequency | 50/60 | Hz |
| Pole pair | 4 | |
| Permiss. ambient temp. during operation | -10 - 40 | °C |
| Classification | ||
| Wirkungsgradklasse | IE1 | IE1-IE5 |
| IP protection rating | IP55 | IP |
| Insulation class | F | |
| Certifications | CE |
| Dimensions | ||
| Output shaft length | 50 | Länge mm |
| Rated values 50 Hz | ||
| Nominal power | 1,5 | kW |
| Nominal voltage delta connection | 220-242 | V |
| Nominal voltage star connection | 380-420 | V |
| Current consumption delta connection | 5,86 | A |
| Current consumption star connection | 3,39 | A |
| Anlaufstrom Ia/In | 6.8 | Faktor |
| Power factor | 0.77 | |
| Efficiency | 82.8 | |
| Motor speed | 1445 | r/min |
| Nominal torque motor | 9,91 | Nm |
| Service factor | 1 | Fs |
| Rated values 60 Hz | ||
| Nominal voltage delta connection | 220-277 | V |
| Nominal voltage star connection | 380-480 | V |
| Motor speed | 1735 | r/min |
Technical datasheet
