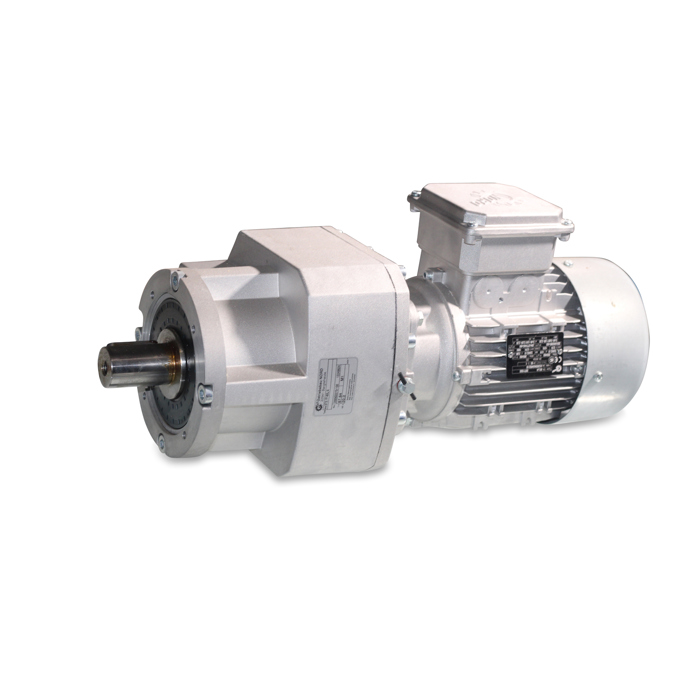

Mot-g 0.75 230/400 3 50 20r Shaft 35x56 SK573.1F-80 L/4
SKU
90-00-3748
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Basic data | ||
| Running mode | S1 | S1-S10 |
| Motor size | 80 | |
| Gear type | Spur gear | |
| Gear design | Flange version | |
| Norm | IEC60034 | |
| Weight | 21.9 | kg |
| Rated values | ||
| Phases | 3 | Anzahl |
| Frequency | 50 | Hz |
| Pole pair | 4 | |
| Type of connection | Star/Delta | |
| Permiss. ambient temp. during operation | -20 - 40 | °C |
| Classification | ||
| Wirkungsgradklasse | IE1 | IE1-IE5 |
| IP protection rating | IP55 | IP |
| Insulation class | F | |
| Certifications | CE |
| Dimensions | ||
| Output shaft length | 56 | Länge mm |
| Rated values 50 Hz | ||
| Nominal power | 0,75 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 3,64 | A |
| Current consumption star connection | 2,1 | A |
| Efficiency | 75.5 | |
| Motor speed | 1375 | r/min |
| Gear speed | 20 | r/min |
Technical datasheet
