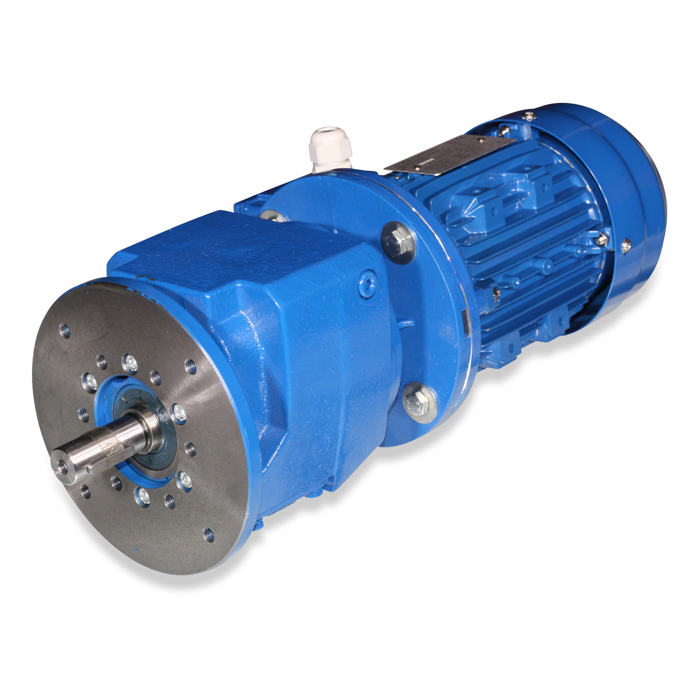

Mot-g 0.37kW 230/400V 3ph 50Hz 27rpm f/elevator EC/EggSmart
SKU
90-00-3750
Sales unit 1 pc
Availability Upon request
Sign in with your myBigDutchman-Account to see your personal price. Open registration
Dimensions | ||
Length | 458.00 | mm |
Width | 203.00 | mm |
Height | 158.00 | mm |
Actual weight | 15.461 | kg |
Basic data | ||
Running mode | S1 | S1-S10 |
Design electric motor | B5 | |
Motor size | 71 | |
Gear type | Spur gear | |
Gear design | Flange version | |
Menge Getriebeöl | 0.45 | kg |
Norm | IEC60034 | |
Weight | 13.5 | kg |
Rated values | ||
Phases | 3 | Anzahl |
Frequency | 50/60 | Hz |
Pole pair | 4 | |
Type of connection | Star/Delta | |
Controllable by | Frequenzumformer | |
Control range | 30-65 | |
Permiss. ambient temp. during operation | 0 - 40 | °C |
Kabel Motor | 4 adrig |
Classification | ||
Wirkungsgradklasse | IE1 | IE1-IE5 |
IP protection rating | IP55 | IP |
Insulation class | F | |
Certifications | CE |
Dimensions | ||
Output shaft length | 50 | Länge mm |
Rated values 50 Hz | ||
Nominal power | 0,37 | kW |
Nominal voltage delta connection | 220-242 | V |
Nominal voltage star connection | 380-420 | V |
Current consumption delta connection | 1,93 | A |
Current consumption star connection | 1,11 | A |
Power factor | 0.74 | |
Efficiency | 65 | |
Motor speed | 1370 | r/min |
Gear speed | 27 | r/min |
Nennmoment Getriebe [Volllast] | 131 | Nm |
Service factor | 1 | Fs |
Rated values 60 Hz | ||
Nominal power | 0,37 | kW |
Nominal voltage delta connection | 220-277 | V |
Nominal voltage star connection | 380-480 | V |
Current consumption delta connection | 1,93 | A |
Current consumption star connection | 1,11 | A |
Power factor | 0.74 | |
Motor speed | 1640 | r/min |
Gear speed | 32,4 | r/min |
Nennmoment Getriebe [Volllast] | 105 | Nm |
Service factor | 1 | Fs |
Technical datasheet
