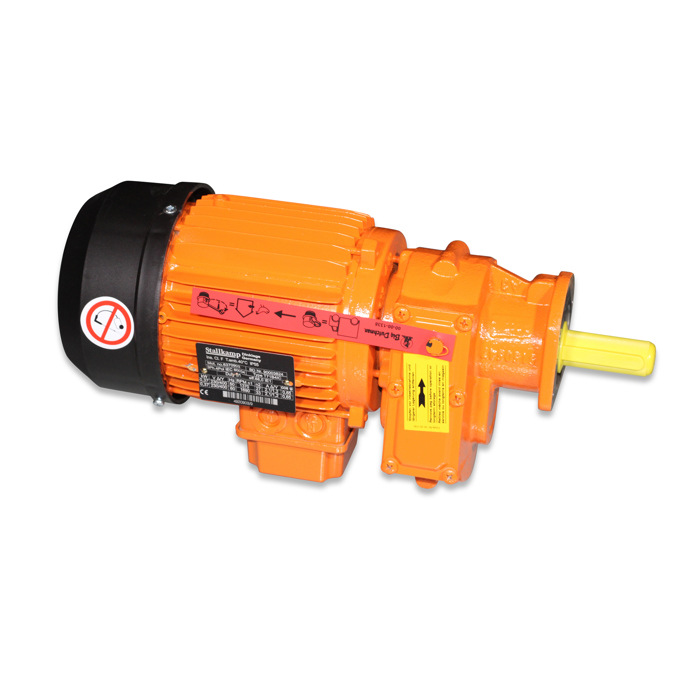

Mot-g 0.37 230/400V 3Ph 50Hz 27.0rpm f/elev ST -2/3 mot
SKU
90-00-3824
Sales unit 1 pc
Availability Upon request
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 368.00 | mm |
| Width | 142.00 | mm |
| Height | 193.00 | mm |
| Actual weight | 10.127 | kg |
| Basic data | ||
| Running mode | S1 | S1-S10 |
| Design electric motor | B14 | |
| Motor size | 71L | |
| Menge Getriebeöl | 71L | kg |
| Norm | IEC60034 |
| Rated values | ||
| Frequency | 50 | Hz |
| Pole pair | 50 | |
| Type of connection | Star/Delta | |
| Permiss. ambient temp. during operation | -15 - 40 | °C |
| Kabel Motor | 4 adrig |
| Classification | ||
| Wirkungsgradklasse | IE1 | IE1-IE5 |
| IP protection rating | IP55 | IP |
| Insulation class | F |
| Rated values 50 Hz | ||
| Nominal power | 0,37 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 1,85 | A |
| Current consumption star connection | 1,07 | A |
| Anlaufstrom Ia/In | 1,07 | Faktor |
| Power factor | 1,07 | |
| Efficiency | 1,07 | |
| Motor speed | 1375 | r/min |
| Nominal torque motor | 2,56 | Nm |
| Gear speed | 27 | r/min |
| Nennmoment Getriebe [Volllast] | 27 | Nm |
| Rated values 60 Hz | ||
| Nominal power | 0,37 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 1,71 | A |
| Current consumption star connection | 0,99 | A |
| Anlaufstrom Ia/In | 0,99 | Faktor |
| Power factor | 0,99 | |
| Efficiency | 0,99 | |
| Motor speed | 1640 | r/min |
| Nominal torque motor | 2,15 | Nm |
| Gear speed | 32 | r/min |
| Nennmoment Getriebe [Volllast] | 32 | Nm |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
