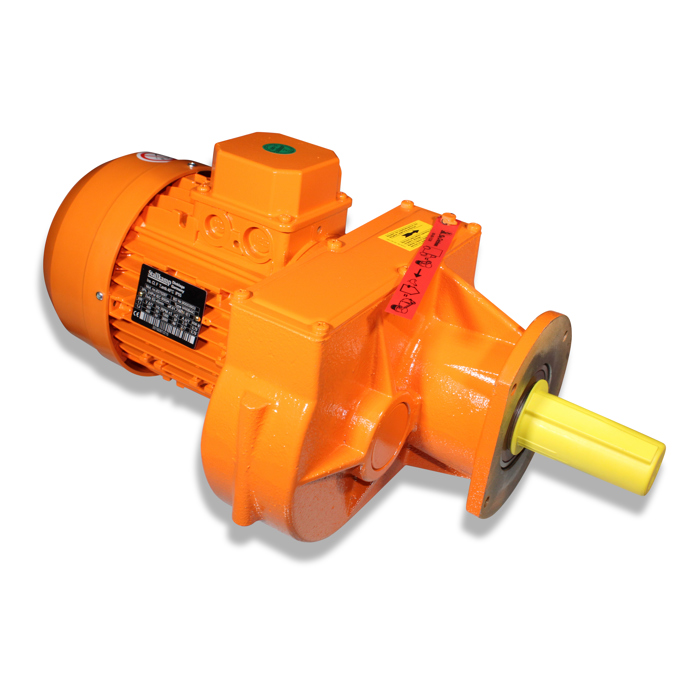

Mot-g 1,1/1,4 400 50 33/66t Shaft 35x56
SKU
90-00-3903
Sales unit 1 pc
Availability Available for order
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 484.00 | mm |
| Width | 266.00 | mm |
| Height | 221.00 | mm |
| Actual weight | 27.615 | kg |
| Basic data | ||
| Running mode | S2 Minuten | S1-S10 |
| Gear design | Flange version | |
| Weight | 27.7 | kg |
| Rated values | ||
| Phases | 3 | Anzahl |
| Frequency | 50 | Hz |
| Permiss. ambient temp. during operation | -15 - 40 | °C |
| Classification | ||
| Wirkungsgradklasse | IE1 | IE1-IE5 |
| IP protection rating | IP55 | IP |
| Insulation class | F | |
| Certifications | CE |
| Dimensions | ||
| Output shaft length | 56 | Länge mm |
| Bemessungsdaten Dalander | ||
| Nennleistung niedrige Drehzahl | 1.1 | KW |
| Nennleistung hohe Drehzahl | 1.4 | KW |
| Nennspannung | 400 | V |
| Stromaufnahme niedrige Drehzahl | 3.77 | A |
| Stromaufnahme hohe Drehzahl | 3.1 | A |
| Cos Phi - Leistungsfaktor niedrige Drehzahl [Volllast] | 0.88 | |
| Wirkungsgrad niedrige Drehzahl [Volllast] | 61.7 | |
| Wirkungsgrad hohe Drehzahl [Volllast] | 60.8 | |
| Drehzahl Motor niedrig | 1296 | r/min |
| Drehzahl Motor hoch | 2658 | r/min |
| Drehzahl Getriebe niedrige Drehzahl | 33 | r/min |
| Drehzahl Getriebe hohe Drehzahl | 66 | r/min |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
