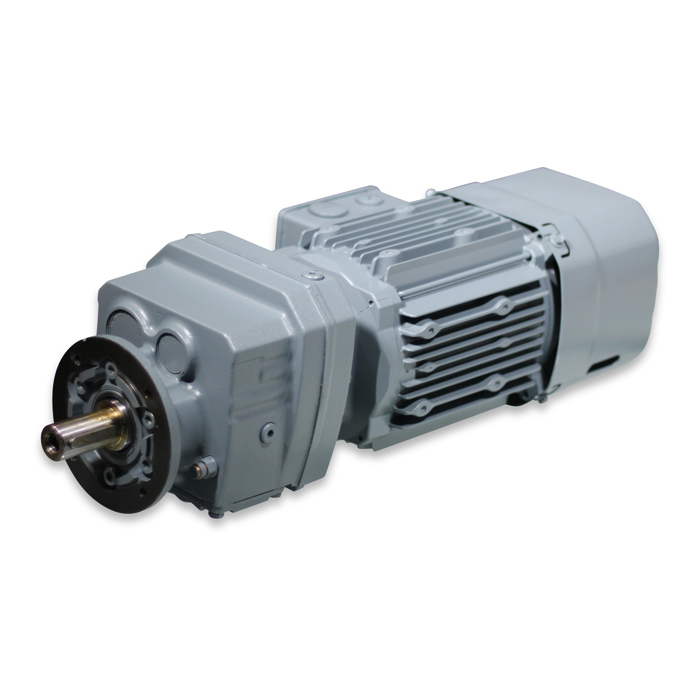

Mot-g 0.75 230/400/50 17r RF37 DRN80M4/RS VW25 RLS
SKU
90-00-3928
Sales unit 1 pc
Availability In stock
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 553.00 | mm |
| Width | 215.00 | mm |
| Height | 168.00 | mm |
| Actual weight | 24.386 | kg |
| Basic data | ||
| Running mode | S1 | S1-S10 |
| Gear design | Flange version | |
| Weight | 24.8 | kg |
| Rated values | ||
| Phases | 3 | Anzahl |
| Frequency | 50/60 | Hz |
| Controllable by | Frequenzumformer | |
| Permiss. ambient temp. during operation | -10 - 40 | °C |
| Classification | ||
| Wirkungsgradklasse | IE2 | IE1-IE5 |
| IP protection rating | IP54 | IP |
| Certifications | CE |
| Dimensions | ||
| Output shaft length | 50 | Länge mm |
| Rated values 50 Hz | ||
| Nominal power | 0,75 | kW |
| Nominal voltage delta connection | 220-242 | V |
| Nominal voltage star connection | 380-420 | V |
| Current consumption delta connection | 3,05 | A |
| Current consumption star connection | 1,75 | A |
| Power factor | 0.79 | |
| Efficiency | 81 | |
| Gear speed | 17 | r/min |
| Rated values 60 Hz | ||
| Nominal power | 0,75 | kW |
| Nominal voltage delta connection | 254-277 | V |
| Nominal voltage star connection | 440-480 | V |
| Current consumption delta connection | 2,65 | A |
| Current consumption star connection | 1,52 | A |
| Power factor | 0.76 | |
| Efficiency | 82.5 | |
| Gear speed | 21 | r/min |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
