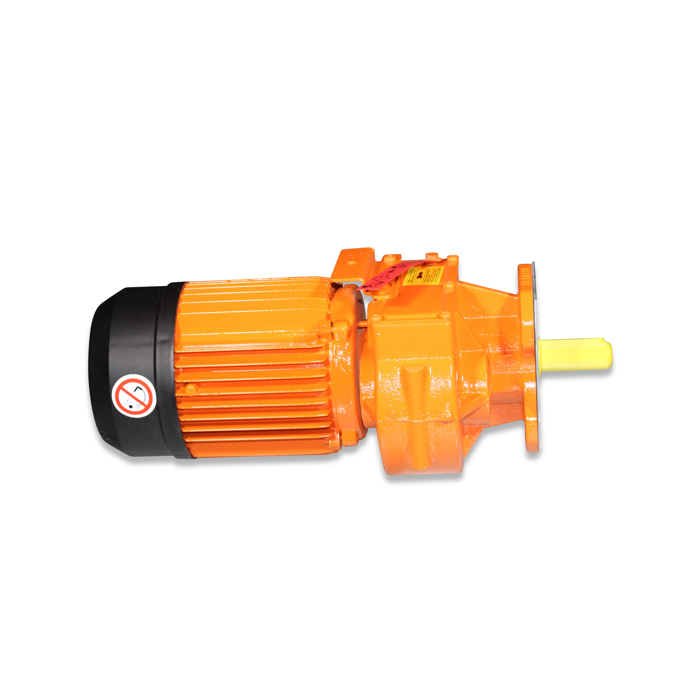

Mot-g 0.37 230/400 50 20r shaft 20x56/F G04 driv rg since 99
SKU
90-00-4034
Sales unit 1 pc
Availability In stock
Sign in with your myBigDutchman-Account to see your personal price. Open registration
| Dimensions | ||
| Length | 405.00 | mm |
| Width | 197.00 | mm |
| Height | 156.00 | mm |
| Actual weight | 14.010 | kg |
| Basic data | ||
| Design electric motor | B14 | |
| Motor size | 71L |
| Rated values | ||
| Frequency | 50 | Hz |
| Pole pair | 50 |
| Classification | ||
| IP protection rating | IP55 | IP |
| Rated values 50 Hz | ||
| Nominal power | 0,37 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 1,85 | A |
| Current consumption star connection | 1,07 | A |
| Motor speed | 1375 | r/min |
| Nominal torque motor | 2,56 | Nm |
| Gear speed | 20 | r/min |
| Rated values 60 Hz | ||
| Nominal power | 0,37 | kW |
| Nominal voltage delta connection | 230 | V |
| Nominal voltage star connection | 400 | V |
| Current consumption delta connection | 1,71 | A |
| Current consumption star connection | 0,99 | A |
| Motor speed | 1645 | r/min |
| Nominal torque motor | 2,15 | Nm |
| Gear speed | 24 | r/min |
Technical datasheet
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
